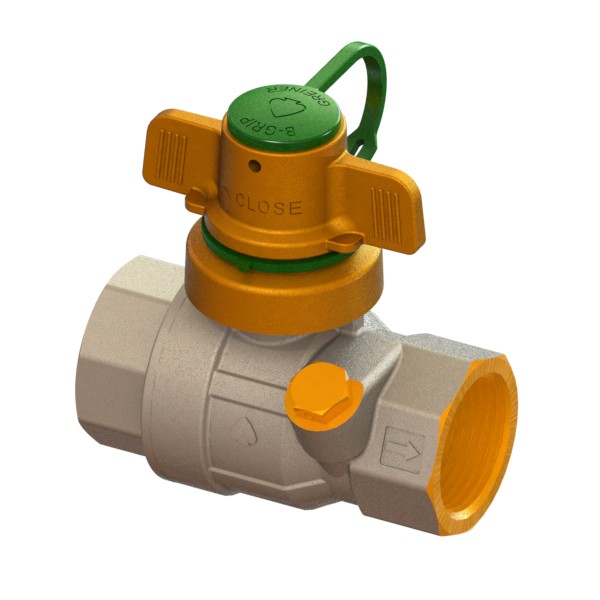

Water full-bore ball valve, standard series, with adjustable survival device with B-Grip T-handle, FEMALE-FEMALE
Application WATER
VALVES
Ball valves with survival device
Full
Ball valves with survival device
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65821600050 | 0,33 | 0,33 | 80 | 0 | 55 | 63 | 0 | 0 | 0 | 0 | 15,5 | 0 | 0 | Rp1/2 | 0 | F-F | 0 | 0 | 56 | 32 | 15 | 0 | 0 | 0 | 0 | 35 | 0 | ott.25 | 0 | 0 | PN50 | 0 | 40,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | F generica | |
| 65821600075 | 0,45 | 0,45 | 60 | 0 | 55 | 71 | 0 | 0 | 0 | 0 | 16,3 | 0 | 0 | Rp3/4 | 0 | F-F | 0 | 0 | 59 | 40 | 20 | 0 | 0 | 0 | 0 | 38 | 0 | ott.32 | 0 | 0 | PN40 | 0 | 45,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | F generica | |
| 65821600100 | 0,74 | 0,74 | 40 | 0 | 70 | 85,5 | 0 | 0 | 0 | 0 | 19,1 | 0 | 0 | Rp1 | 0 | F-F | 0 | 0 | 68 | 50 | 25 | 0 | 0 | 0 | 0 | 45,5 | 0 | ott.38.5 | 0 | 0 | PN40 | 0 | 54 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | F generica |
