Gas full-bore ball valve, heavy execution, with safety cap AG-Block FEMALE-FEMALE

Application GAS

VALVES
Ball valves with safety device
Full

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
65467200075	0,71	0,71	48	0	0	68	0	0	0	0	16,3	0	0	Rp3/4	0	F-F	20x34	0	60,5	42,5	20	0	0	0	0	33,75	0	es.33	0	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	Disp AG-Block	F generica
65467200100	1,03	1,03	32	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
65467200125	1,41	1,41	20	0	0	93,5	0	0	0	0	21,4	0	0	Rp1.1/4	0	F-F	20x34	0	75	63	32	0	0	0	0	47	0	ott.50	0	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	Disp AG-Block	F generica
65467200150	1,99	1,99	16	0	0	105,5	0	0	0	0	21,4	0	0	Rp1.1/2	0	F-F	20x34	0	82	77	40	0	0	0	0	53	0	ott.56	0	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	Disp AG-Block	F generica
65467200200	3,48	3,48	12	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0

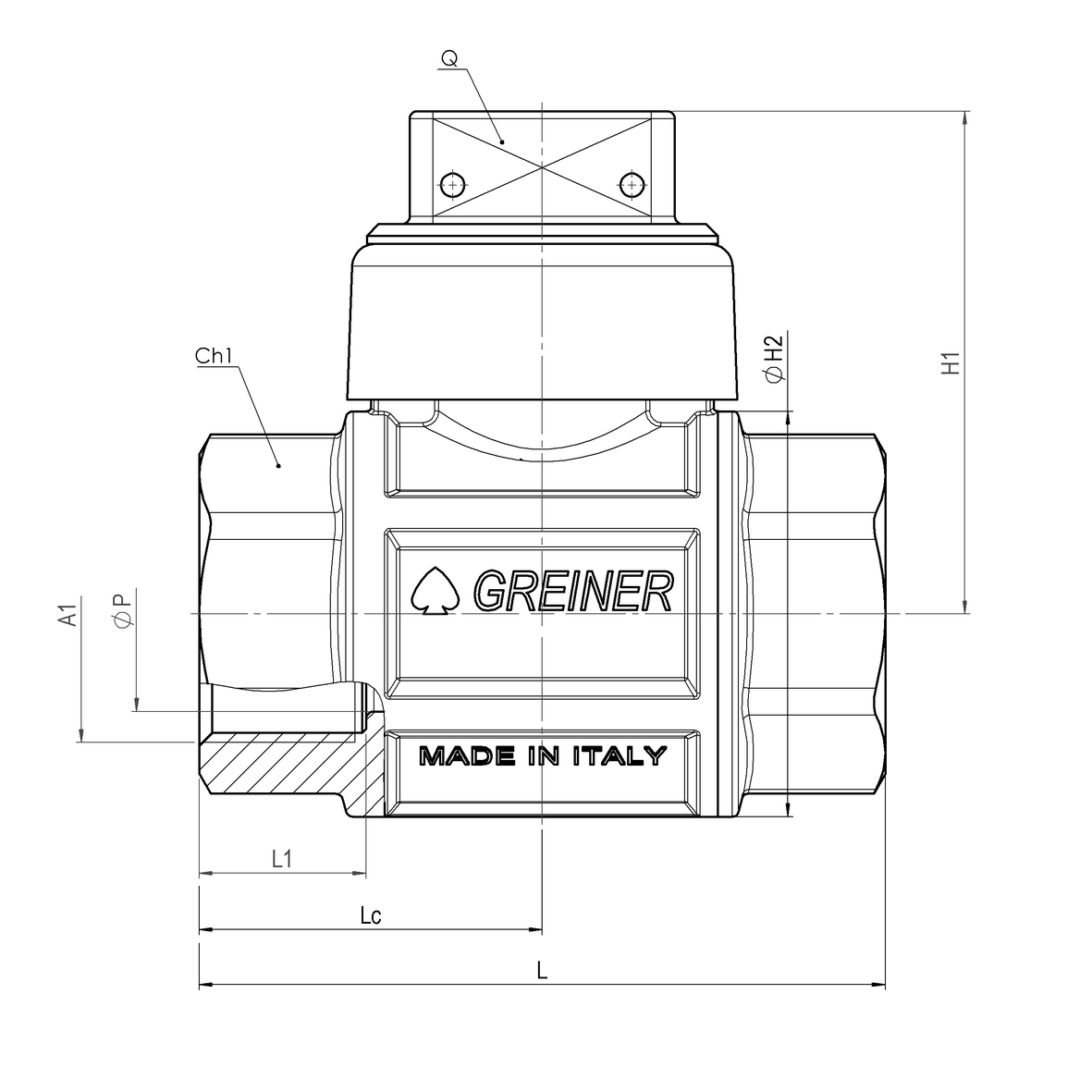

Download scheme
