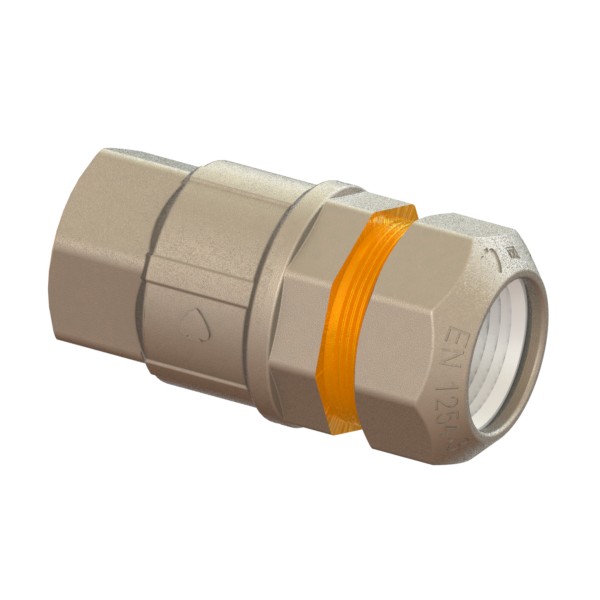

Full-bore spring check valve, heavy execution, FEMALE-PE
Application WATER
VALVES
Spring check valves
Full
Spring check valves
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11604500075 | 0,41 | 0,41 | 100 | 0 | 0 | 84,5 | 39,9 | 0 | 0 | 0 | 16,3 | 0 | 0 | Rp3/4 | Ø25 | F-PE | 0 | 0 | 0 | 42,5 | 20 | 0 | 0 | 0 | 0 | 0 | 0 | es.33 | ott.38.5 | ott.39 | PN16 | 12,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 11604500100 | 0,62 | 0,62 | 64 | 0 | 0 | 97 | 43 | 0 | 0 | 0 | 19,1 | 0 | 0 | Rp1 | Ø32 | F-PE | 0 | 0 | 0 | 52 | 25 | 0 | 0 | 0 | 0 | 0 | 0 | es.41 | ott.48 | ott.49 | PN16 | 17,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
