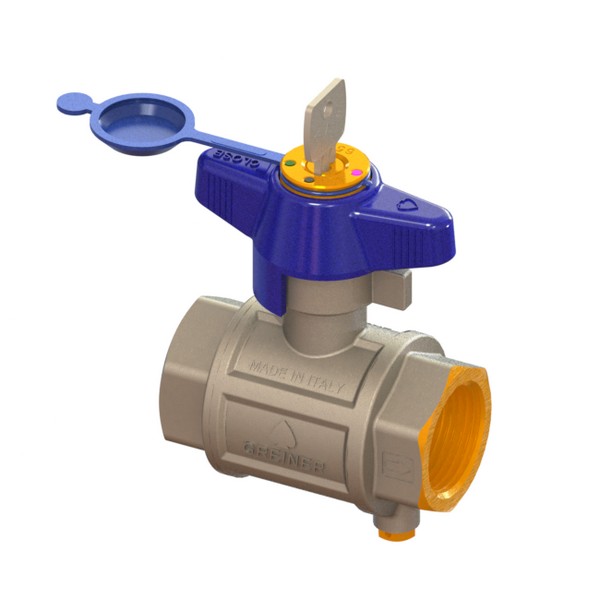

Water full-bore ball valve, heavy execution, with adjustable survival device, with lock 651 to 685, FEMALE-FEMALE
Application WATER
VALVES
Ball valves with survival device
Full
Ball valves with survival device
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65840500075 | 0,75 | 0,75 | 24 | 0 | 80 | 68,5 | 0 | 0 | 0 | 0 | 16,3 | 16,3 | 0 | Rp3/4 | Rp3/4 | F-F | - | 0 | 72,7 | 42,5 | 20 | 0 | 0 | 0 | 0 | 34,25 | 0 | es.33 | es.33 | - | PN64 | - | 0 | 32 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | 651-685 | - | Serratura | F generica | |
| 65840500100 | 1 | 1 | 24 | 0 | 80 | 82 | 0 | 0 | 0 | 0 | 19,1 | 19,1 | 0 | Rp1 | Rp1 | F-F | - | 0 | 77,2 | 52 | 25 | 0 | 0 | 0 | 0 | 41 | 0 | es.41 | es.41 | - | PN64 | - | 0 | 35 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | 651-685 | - | Serratura | F generica |
