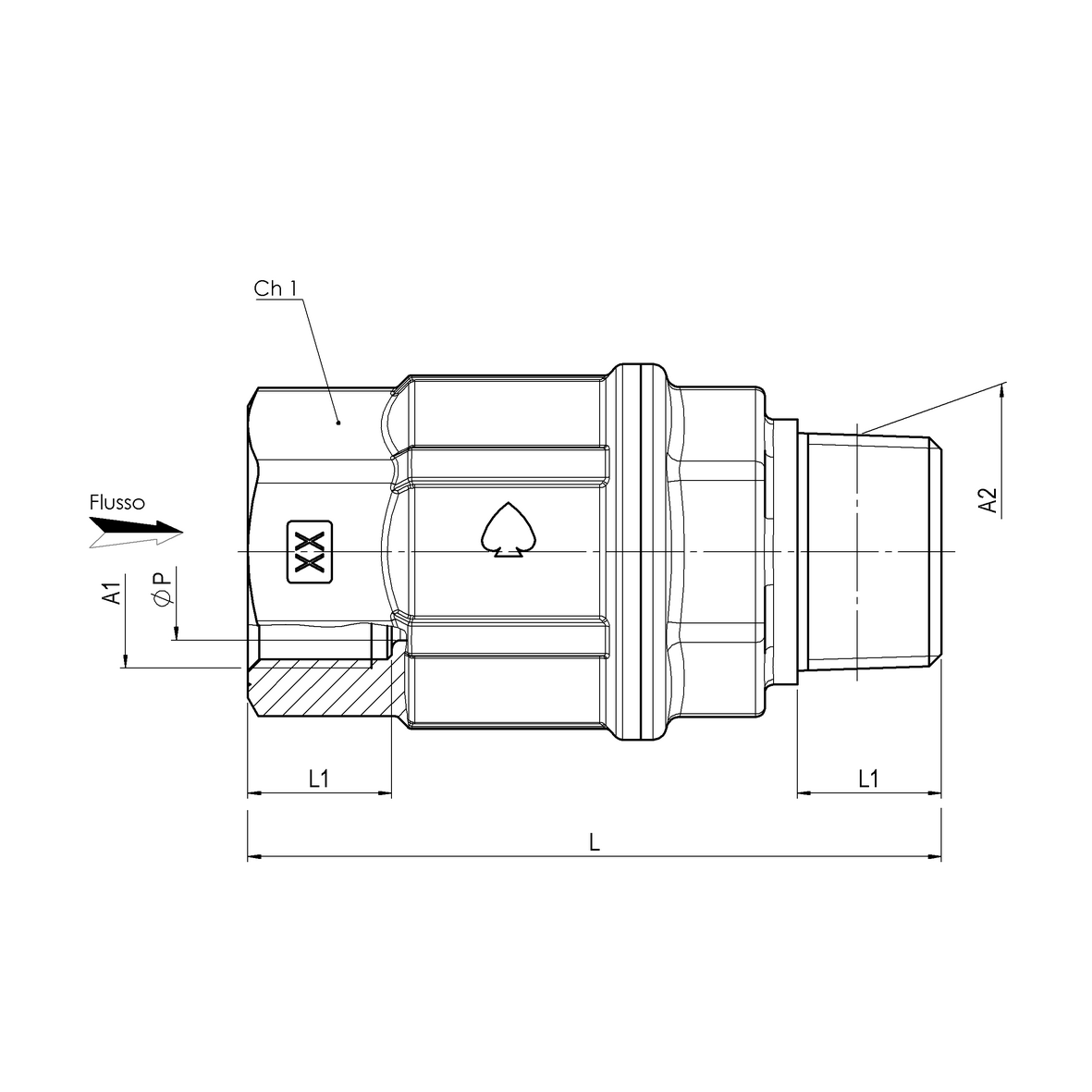

Full-bore spring check valve, heavy execution, extra long L=80, MALE-FEMALE
Application WATER
VALVES
Spring check valves
Full
Spring check valves
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11605600075 | 0,32 | 0,32 | 100 | 0 | 0 | 78,5 | 0 | 0 | 0 | 0 | 16,3 | 0 | 0 | Rp3/4 | R3/4 | F-M | 0 | 0 | 0 | 42,5 | 20 | 0 | 0 | 0 | 0 | 0 | 0 | es.33 | 0 | 0 | PN50 | 12,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
