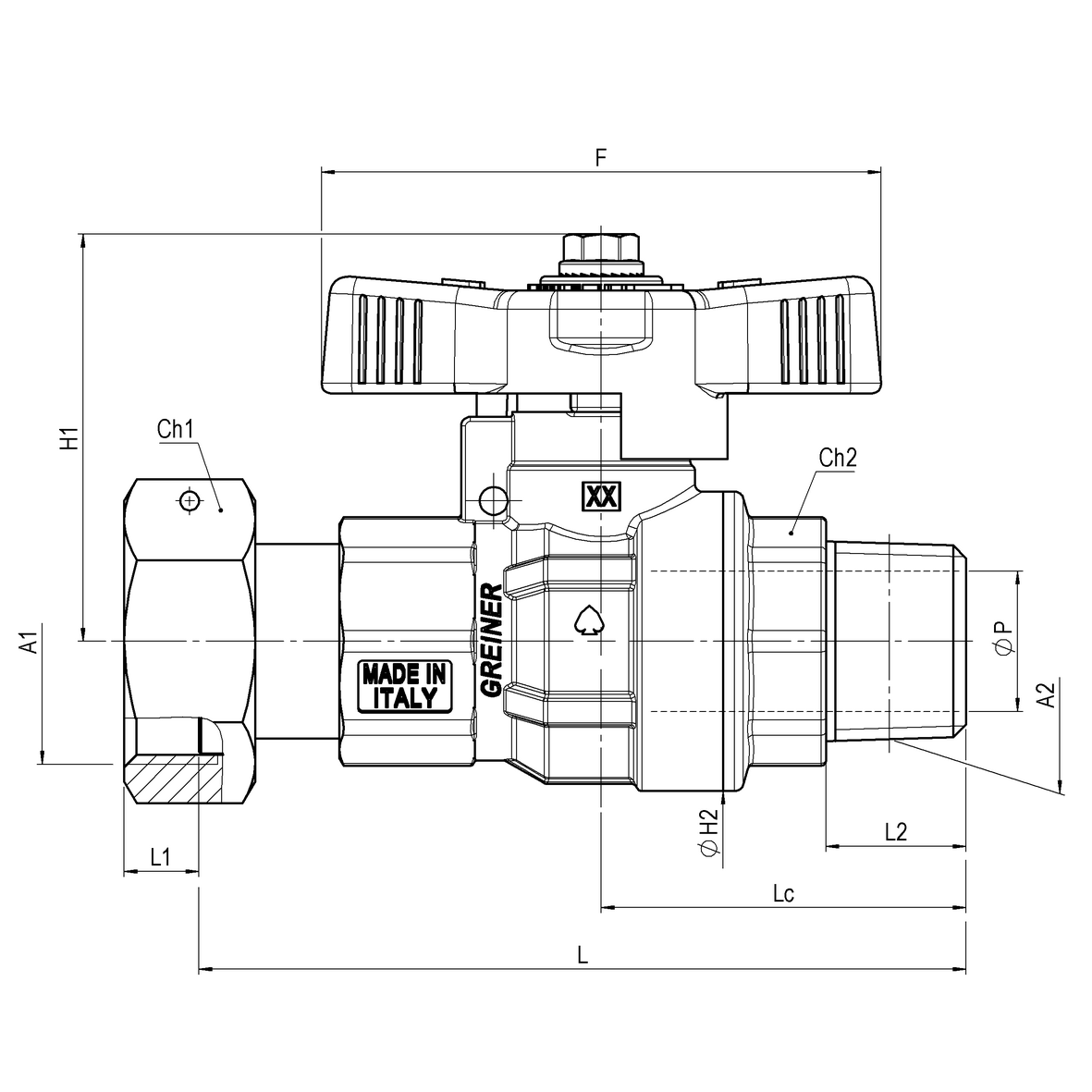

Water meter full-bore ball valve, standard series, with sealable T-handle MALE-MOVING NUT
Application WATER
VALVES
Ball valves for water meters
Full
Ball valves for water meters
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65892300608 | 0,44 | 0,44 | 80 | 0 | 60 | 82 | 0 | 0 | 0 | 0 | 8 | 15 | 0 | G3/4 | R1/2 | Gi-M | 0 | 0 | 43,5 | 32 | 15 | 0 | 0 | 0 | 0 | 39 | 0 | es.30 | ott.25 | 0 | PN25 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Dado piana |
