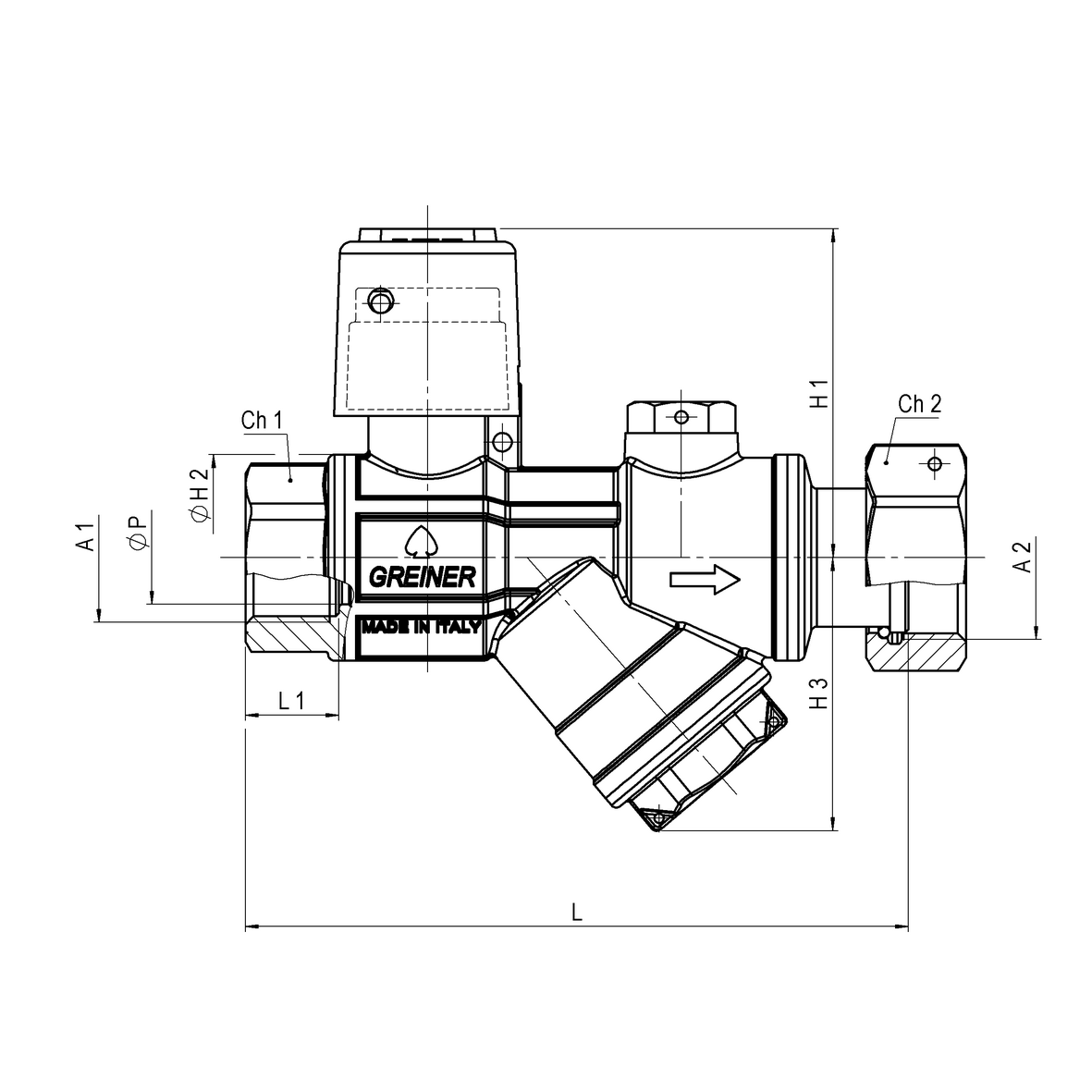

Water full-bore ball valve, heavy execution, in CR brass with filter and PCP downstream of it, with green sealable cap FEMALE-MOVING NUT
Application WATER
VALVES
Ball valves with built-in filter
Full
Ball valves with built-in filter
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 63070400608 | 0,6 | 0,6 | 50 | 0 | 0 | 106,3 | 0 | 0 | 0 | 0 | 15 | 9,2 | 0 | G1/2 | G3/4 | F-Gi | 23x12 | 0 | 52,7 | 33 | 15 | 0 | 0 | 0 | 0 | 29,2 | 0 | es.27 | es.32 | 0 | PN25 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/4 | 0 | 0 | 0 | F generica |
