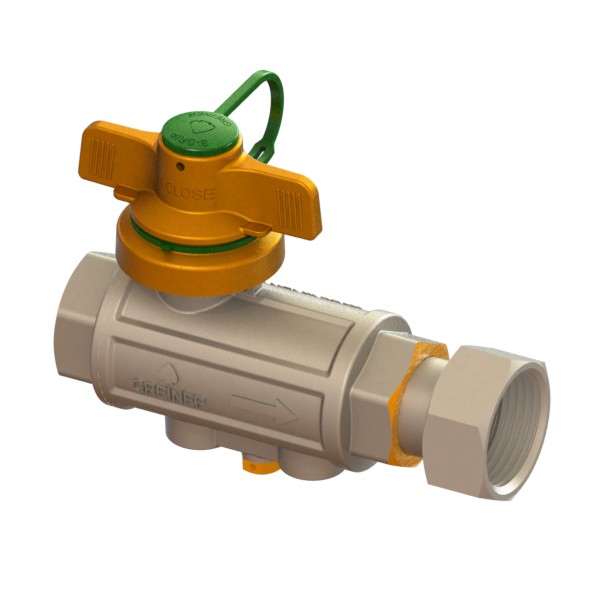

Water full-bore ball valve, heavy execution, with check valve and adjustable survival device with B-Grip T-handle, FEMALE-MOVING NUT
Application WATER
VALVES
Ball valves with survival device
Full
Ball valves with survival device
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65811900608 | 0,59 | 0,59 | 48 | 0 | 55 | 84,5 | 0 | 0 | 0 | 0 | 15 | 0 | 0 | Rp1/2 | G3/4 | F-Gi | - | 0 | 60 | 33 | 15 | 0 | 0 | 0 | 0 | 29,2 | 0 | es.27 | es.32 | - | PN25 | - | 0 | 28,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | Disp. B-Grip | F generica | |
| 65811900613 | 0,96 | 0,96 | 40 | 0 | 70 | 115 | 0 | 0 | 0 | 0 | 16,3 | 12 | 0 | Rp3/4 | G1 | F-Gi | 0 | 0 | 65,9 | 42,5 | 20 | 0 | 0 | 0 | 0 | 34,25 | 0 | es.33 | es.37 | 0 | PN25 | 0 | 0 | 31 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | F generica | |
| 65811900619 | 1,51 | 1,51 | 24 | 0 | 70 | 141 | 0 | 0 | 0 | 0 | 19,1 | 12,5 | 0 | Rp1 | G1.1/4 | F-Gi | 0 | 0 | 70,2 | 52 | 25 | 0 | 0 | 0 | 0 | 41 | 0 | es.41 | es.48 | 0 | PN25 | 0 | 0 | 35,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | F generica |
