Water full-bore ball valve, standard series, with tamper-proof B-Grip T-handle, FEMALE-FEMALE

Application WATER

VALVES
Ball valves with tamper-proof device
Full

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
65820900050	0,29	0,29	96	0	55	56	0	0	0	0	15	0	0	Rp1/2	0	F-F	0	0	55,5	32	15	0	0	0	0	28	0	ott.25	0	0	PN50	30	0	0	0	0	0	0	0	0	0	0	0	0	0	Disp. B-Grip	F generica
65820900075	0,46	0,46	72	0	55	66	0	0	0	0	16,3	0	0	Rp3/4	0	F-F	0	0	59	40	20	0	0	0	0	33	0	ott.32	0	0	PN40	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65820900100	0,72	0,72	48	0	70	80	0	0	0	0	19,1	0	0	Rp1	0	F-F	0	0	67,5	50	25	0	0	0	0	40	0	ott.38.5	0	0	PN40	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65820900125	0,98	0,98	40	0	70	91	0	0	0	0	21,4	0	0	Rp1.1/4	0	F-F	0	0	73	60	32	0	0	0	0	45,5	0	ott.48	0	0	PN32	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica

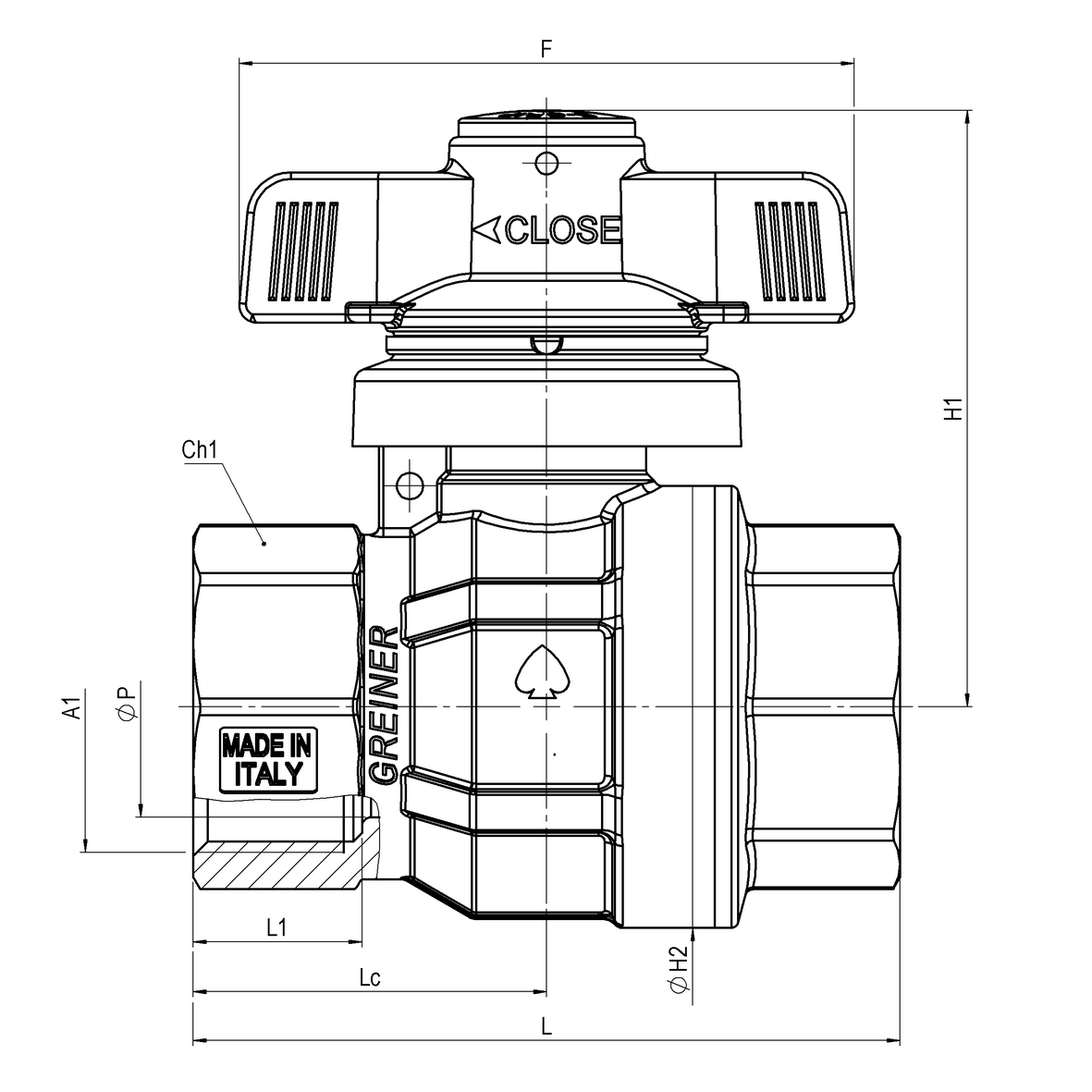

Download scheme
