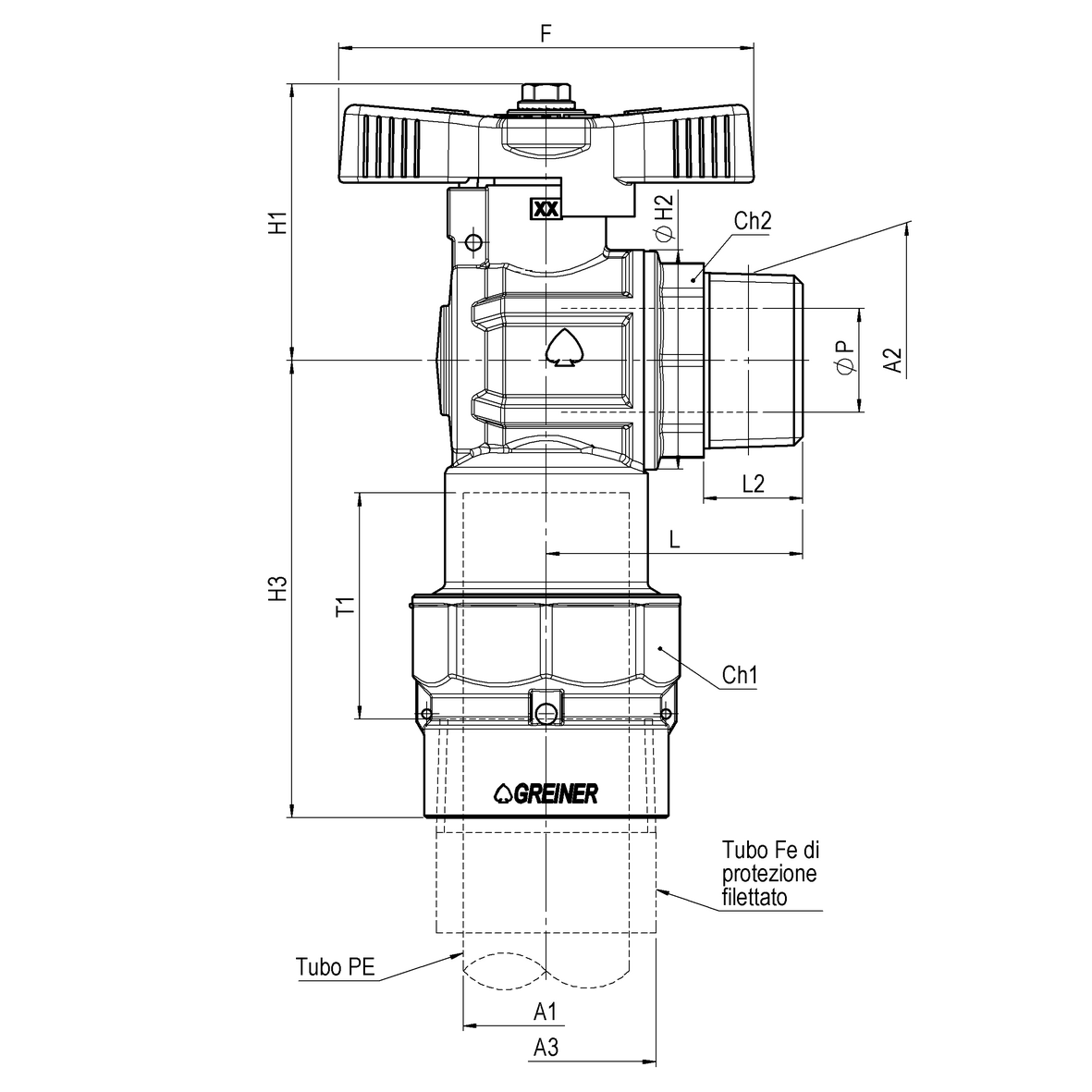

Gas full-bore, right-angle ball valve, heavy execution, for protected PE, with yellow sealable T-handle PE-MALE
Application GAS
VALVES
Ball valves with compression fitting for PE pipe, with connection for protective pipe FE
Full
Ball valves with compression fitting for PE pipe, with connection for protective pipe FE
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 67525000100 | 0,81 | 0,81 | 40 | 0 | 80 | 49,35 | 43,5 | 0 | 0 | 0 | 0 | 19,1 | 0 | Ø32 | R1 | PE-M | 0 | 0 | 53,2 | 42,5 | 20 | 0 | 0 | 0 | 0 | 0 | 0 | ott.48 | ott.35 | 0 | -- | 0 | 0 | 88 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1.1/4 | 0 | PE protetto con att filett. | |
| 67525000638 | 0,79 | 0,79 | 30 | 0 | 80 | 48,55 | 43,5 | 0 | 0 | 0 | 0 | 16,3 | 0 | Ø32 | R3/4 | PE-M | 0 | 0 | 53,2 | 42,5 | 20 | 0 | 0 | 0 | 0 | 0 | 0 | ott.48 | es.33 | 0 | -- | 0 | 0 | 88 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1.1/4 | 0 | PE protetto con att filett. |
