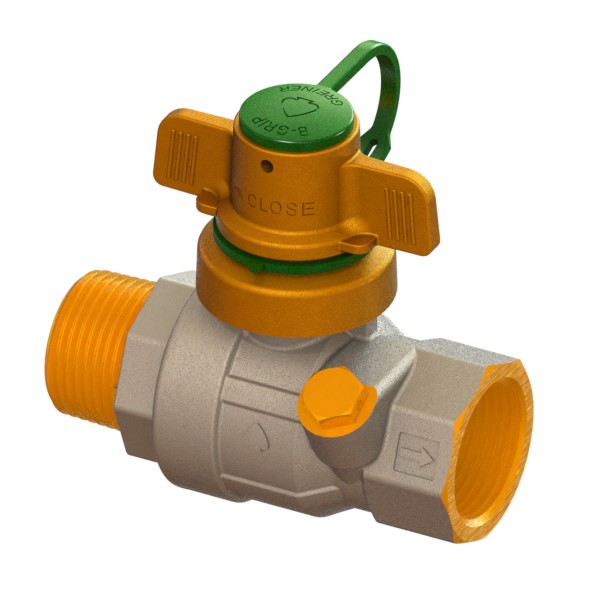

Water full-bore ball valve, standard series, with adjustable survival device with B-Grip T-handle, MALE-FEMALE
Application WATER
VALVES
Ball valves with survival device
Full
Ball valves with survival device
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65827600050 | 0,37 | 0,37 | 80 | 0 | 55 | 74 | 0 | 0 | 0 | 0 | 15 | 15 | 0 | R1/2 | Rp1/2 | M-F | 0 | 0 | 55,5 | 32 | 15 | 0 | 0 | 0 | 0 | 35 | 0 | ott.25 | ott.25 | 0 | PN50 | 0 | 16 | 0 | 41,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | M generico | |
| 65827600075 | 0,5 | 0,5 | 72 | 0 | 55 | 81,3 | 0 | 0 | 0 | 0 | 16,3 | 16,3 | 0 | R3/4 | Rp3/4 | M-F | 0 | 0 | 59 | 40 | 20 | 0 | 0 | 0 | 0 | 38 | 0 | ott.32 | ott.32 | 0 | PN40 | 0 | 20 | 0 | 46 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | M generico | |
| 65827600100 | 0,84 | 0,84 | 36 | 0 | 70 | 97,1 | 0 | 0 | 0 | 0 | 19,1 | 19,1 | 0 | R1 | Rp1 | M-F | 0 | 0 | 67,5 | 50 | 25 | 0 | 0 | 0 | 0 | 45,5 | 0 | ott.38.5 | ott.38.5 | 0 | PN40 | 0 | 25 | 0 | 54 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | M generico |
