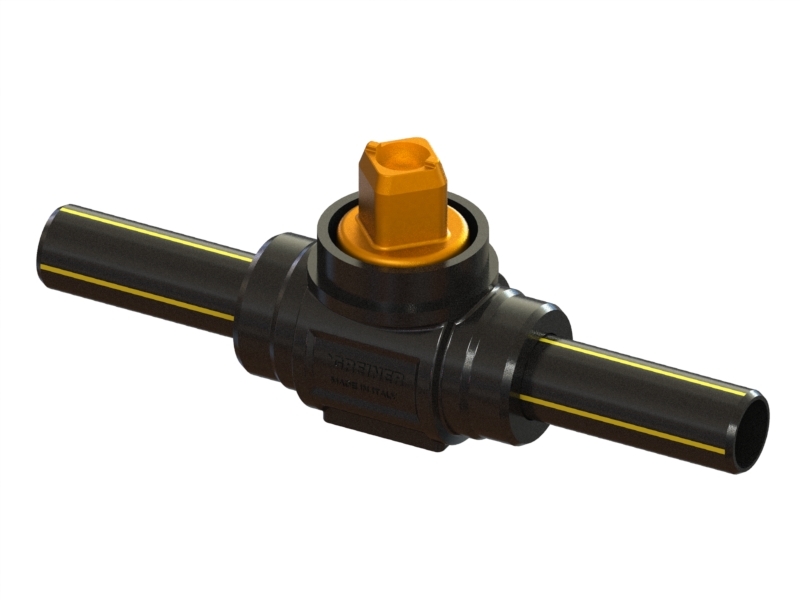

Gas full-bore ball valve, heavy execution, covered in PUR for PE pipe to be welded, with truncated pyramid-shaped cap, PE-PE

Application GAS

VALVES
Ball valves for PE pipe to be welded
Full

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
65464300725	0,98	0,98	15	0	0	260	0	0	0	63	82	0	0	Ø25	0	PE-PE	28	0	75	0	20	0	0	0	0	0	0	0	0	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE a saldare
65464300732	1,38	1,38	10	0	0	288	0	0	0	63	92	0	0	Ø32	0	PE-PE	28	0	80	0	25	0	0	0	0	0	0	0	0	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE a saldare
65464300740	2,46	2,46	5	0	0	323	0	0	0	79	100	0	0	Ø40	0	PE-PE	28	0	90	0	32	0	0	0	0	0	0	0	0	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE a saldare
65464300750	2,82	2,82	5	0	0	376	0	0	0	79	115	0	0	Ø50	0	PE-PE	28	0	97	0	40	0	0	0	0	0	0	0	0	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE a saldare
65464300763	5,13	5,13	4	0	0	428	0	0	0	79	127	0	0	Ø63	0	PE-PE	28	0	110	0	50	0	0	0	0	0	0	0	0	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE a saldare

Download scheme
