Water full-bore ball valve, heavy execution with in-line check valve and 2 45°-drains with sealable T-handle, telescopic FEMALE-MOVING NUT
Application WATER
VALVES
Ball valves with built-in check valve
Full
Ball valves with built-in check valve
Full

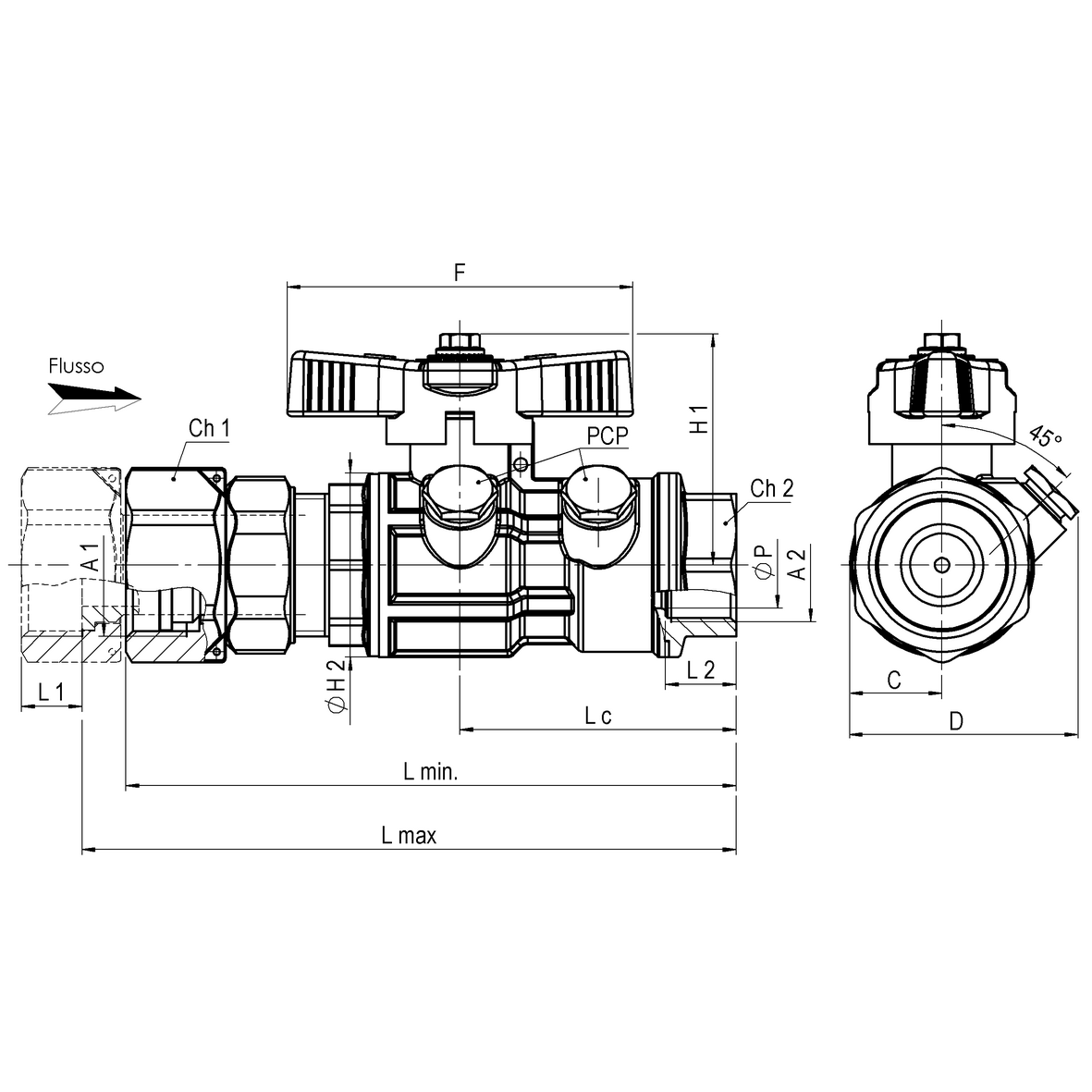

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65185300050 | 0,56 | 0,56 | 50 | 0 | 60 | 0 | 0 | 0 | 0 | 0 | 12 | 15 | 129,5 | G3/4 | Rp1/2 | Gi-F | 0 | 118,5 | 47,7 | 33 | 15 | 0 | 0 | 0 | 0 | 51,8 | 0 | es.31.5 | es.27 | 0 | PN25 | 8 | 16,5 | 0 | 45,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/4 | 0 | 0 | 0 | Dado piana |
