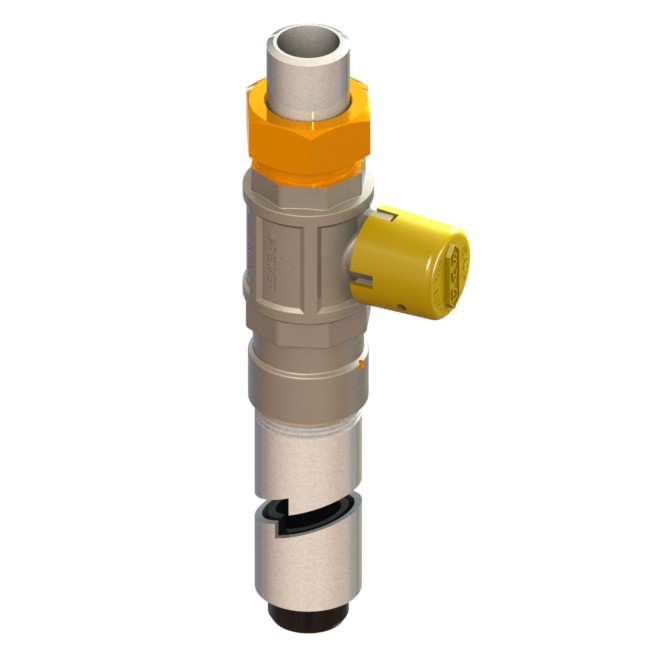

Gas full-bore ball valve, heavy execution, Gastick type, with yellow sealable cap PE-FE to be welded
Application GAS
VALVES
Ball valves for PE pipe to be welded with protective pipe FE, GASTICK type
Full
Ball valves for PE pipe to be welded with protective pipe FE, GASTICK type
Full

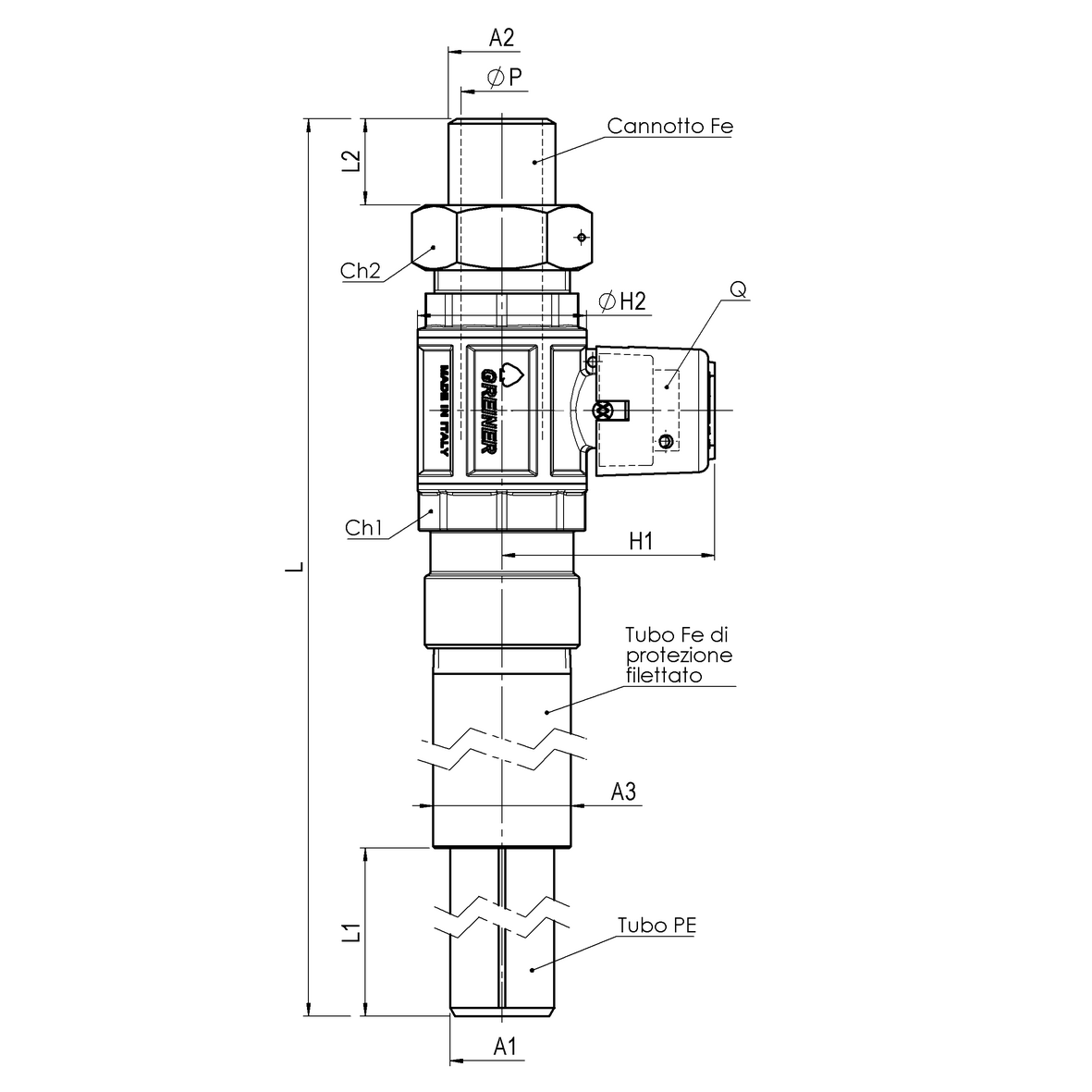

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65574800100 | 3,25 | 3,25 | 1 | 0 | 0 | 864 | 0 | 0 | 0 | 0 | 114 | 26,5 | 0 | Ø32 | 1 | PE-Fe | 12x25 | 0 | 65,5 | 52 | 25 | 0 | 0 | 0 | 0 | 0 | 0 | ott.48 | es.48 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Rp1.1/4 | 0 | PE protetto con att filett. | |
| 65574800572 | 3,93 | 3,93 | 1 | 0 | 0 | 1314 | 0 | 0 | 0 | 0 | 364 | 26,5 | 0 | Ø32 | 1 | PE-Fe | 12x25 | 0 | 65,5 | 52 | 25 | 0 | 0 | 0 | 0 | 0 | 0 | ott.48 | es.48 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1.1/4 | 0 | PE protetto con att filett. | |
| 65574800575 | 10,83 | 10,83 | 1 | 0 | 0 | 1364 | 0 | 0 | 0 | 0 | 340 | 30 | 0 | Ø50 | 2 | PE-Fe | 16x30 | 0 | 0 | 93 | 50 | 0 | 0 | 0 | 0 | 0 | 0 | ott.84 | ott.84 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Rp2.1/2 | 0 | PE protetto con att filett. |
