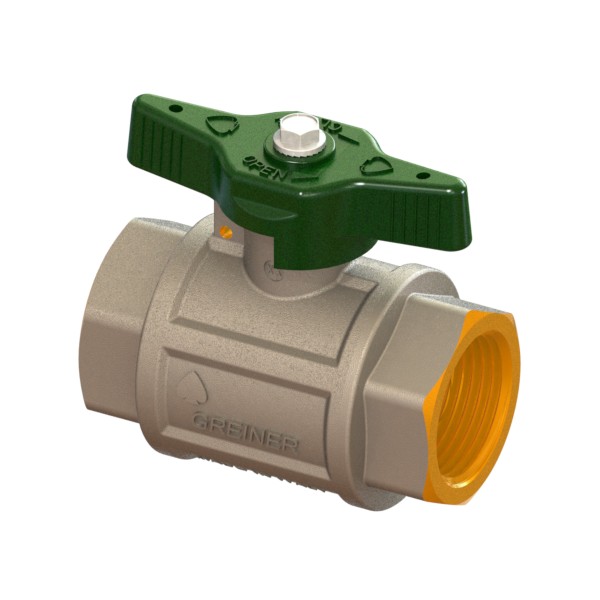

Water full-bore ball valve, heavy execution, with sealable T-handle FEMALE-FEMALE

Application WATER

VALVES
Full-bore ball valves
Full

Code	Kg	Box	Master Box	F	L	L1	L2	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65520000038	0,17	0,17	100	60	50	11,4	0	Rp3/8	-	F-F	-	45,2	25,5	10	25	es.22	-	-	PN100	-	-	-	-	-	F generica
65520000050	0,27	0,27	100	60	58,4	15	0	Rp1/2	0	F-F	0	47,7	33	15	29,2	es.27	0	0	PN100	0	0	0	0	0	F generica
65520000075	0,5	0,5	64	80	68,5	16,3	0	Rp3/4	0	F-F	0	53,4	42,5	20	34,3	es.33	0	0	PN64	0	0	0	0	0	F generica
65520000100	0,8	0,8	50	80	82	19,1	0	Rp1	0	F-F	0	57,7	52	25	41	es.41	0	0	PN64	0	0	0	0	0	F generica
65520000125	1,17	1,17	20	110	93	21,4	0	Rp1.1/4	0	F-F	0	70,2	63	32	46,5	ott.50	0	0	PN50	0	0	0	0	0	F generica
65520000150	1,75	1,75	16	110	105	21,4	0	Rp1.1/2	0	F-F	0	77,2	77	40	52,5	ott.56	0	0	PN50	0	0	0	0	0	F generica
65520000200	2,74	2,74	10	140	125	25,7	0	Rp2	0	F-F	0	92,2	93	50	62,5	ott.70	0	0	PN40	0	0	0	0	0	F generica
65520000608	0,28	0,28	100	60	61,4	15	16,3	Rp1/2	Rp3/4	F-F	-	47,7	34	15	29,2	es.27	ott.31	-	PN100	-	-	-	-	-	F generica
