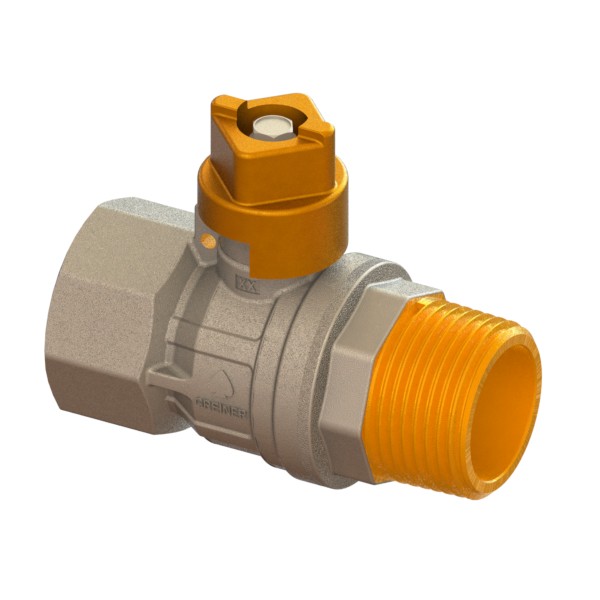

Water reduced-bore ball valve, standard series, with square cap MALE-FEMALE
Application WATER
VALVES
Reduced-bore ball valves
Reduced
Reduced-bore ball valves
Reduced
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65272700100 | 0,47 | 0,47 | 72 | 0 | 0 | 82,7 | 0 | 0 | 0 | 0 | 19,1 | 19,1 | 0 | Rp1 | R1 | F-M | 19 | 0 | 49,5 | 42 | 20 | 0 | 0 | 0 | 0 | 36,1 | 0 | ott.38 | ott.35 | - | PN25 | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | - | F generica | |
| 65272700150 | 1,05 | 1,05 | 30 | 0 | 0 | 105,3 | 0 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/2 | R1.1/2 | F-M | 24 | 0 | 64,5 | 62 | 32 | 0 | 0 | 0 | 0 | 46,4 | 0 | ott.55 | ott.50 | 0 | PN25 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65272700200 | 1,66 | 1,66 | 20 | 0 | 0 | 121,9 | 0 | 0 | 0 | 0 | 25,7 | 25,7 | 0 | Rp2 | R2 | F-M | 24 | 0 | 76 | 76 | 40 | 0 | 0 | 0 | 0 | 56,7 | 0 | ott.67 | ott.62 | 0 | PN25 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
