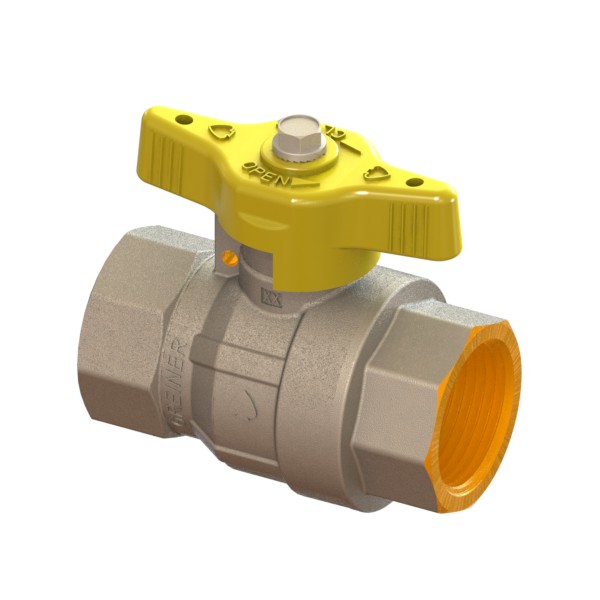

Gas full-bore ball valve, standard series, with yellow sealable T-handle FEMALE-FEMALE
Application GAS
VALVES
Full-bore ball valves
Full
Full-bore ball valves
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65829500050 | 0,22 | 0,22 | 120 | 0 | 60 | 56 | 0 | 0 | 0 | 0 | 15 | 0 | 0 | Rp1/2 | 0 | F-F | 0 | 0 | 43,5 | 32 | 15 | 0 | 0 | 0 | 0 | 28 | 0 | ott.25 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65829500075 | 0,35 | 0,35 | 100 | 0 | 60 | 66 | 0 | 0 | 0 | 0 | 16,3 | 0 | 0 | Rp3/4 | 0 | F-F | 0 | 0 | 47 | 40 | 20 | 0 | 0 | 0 | 0 | 33 | 0 | ott.32 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65829500100 | 0,62 | 0,62 | 48 | 0 | 80 | 80 | 0 | 0 | 0 | 0 | 19,1 | 0 | 0 | Rp1 | 0 | F-F | 0 | 0 | 55 | 50 | 25 | 0 | 0 | 0 | 0 | 40 | 0 | ott.38.5 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
