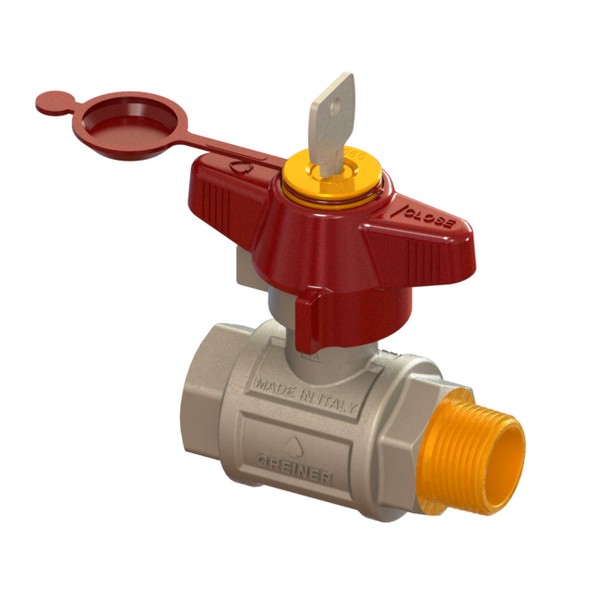

Water full-bore ball valve, heavy execution, 2 pos. tamper-proof lock 0901 with red T-handle, MALE-FEMALE
Application WATER
VALVES
Ball valves with tamper-proof device
Full
Ball valves with tamper-proof device
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65841800050 | 0,47 | 0,47 | 24 | 0 | 80 | 70,9 | 0 | 0 | 0 | 0 | 15 | 15 | 0 | Rp1/2 | R1/2 | F-M | 0 | 0 | 69 | 33 | 15 | 0 | 0 | 0 | 0 | 29,2 | 0 | es.27 | es.27 | 0 | PN100 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 901 | 0 | Serratura | F generica | |
| 65841800075 | 0,67 | 0,67 | 20 | 0 | 80 | 82,8 | 0 | 0 | 0 | 0 | 16,3 | 16,3 | 0 | Rp3/4 | R3/4 | F-M | 0 | 0 | 73 | 42,5 | 20 | 0 | 0 | 0 | 0 | 34,25 | 0 | es.33 | es.33 | 0 | PN64 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 901 | 0 | Serratura | F generica | |
| 65841800100 | 1,03 | 1,03 | 20 | 0 | 80 | 96,1 | 0 | 0 | 0 | 0 | 19,1 | 19,1 | 0 | Rp1 | R1 | F-M | 0 | 0 | 77,5 | 52 | 25 | 0 | 0 | 0 | 0 | 41 | 0 | es.41 | es.41 | 0 | PN64 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 901 | 0 | Serratura | F generica |
