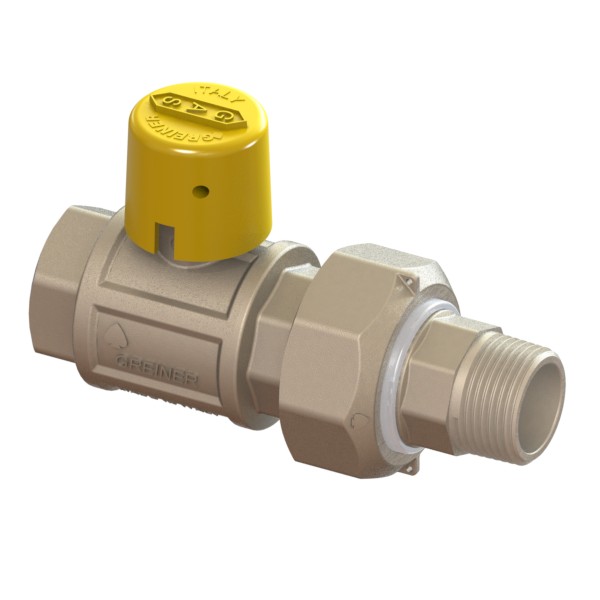

Gas full-bore ball valve, heavy execution, with dielectric joint, yellow sealable cap FEMALE-MALE pipe union

Application GAS

JOINTS
Dielectric joints
Full

Code	Kg	Box	Master Box	L	L1	L2	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65481700075	0,88	0,88	24	126	16,3	16,3	Rp3/4	R3/4	F-M	12x25	62	42,5	20	34,25	es.33	ott.50	-	--	-	-	-	-	-	F generica
65481700100	1,32	1,32	24	145,5	19,1	19,1	Rp1	R1	F-M	12x25	65,5	52	25	41	es.41	ott.59	ott.35	--	0	0	0	0	0	F generica
65481700125	2,03	2,03	16	166	21,4	21,4	Rp1.1/4	R1.1/4	F-M	12x25	76	63	32	46,5	ott.50	ott.71	0	--	0	0	0	0	0	F generica
65481700150	2,97	2,97	12	182,5	21,4	0	Rp1.1/2	R1.1/2	F-M	12x25	83	77	40	52,5	ott.56	ott.83	0	--	0	0	0	0	0	F generica
65481700200	4,27	4,27	9	206	25,7	0	Rp2	R2	F-M	16x30	97	93	50	62,5	ott.70	ott.96	0	--	0	0	0	0	0	F generica
