Water full-bore ball valve, standard series, with sealable T-handle, FEMALE-MALE with pipe union
Application WATER
VALVES
Full-bore ball valves
Full
Full-bore ball valves
Full

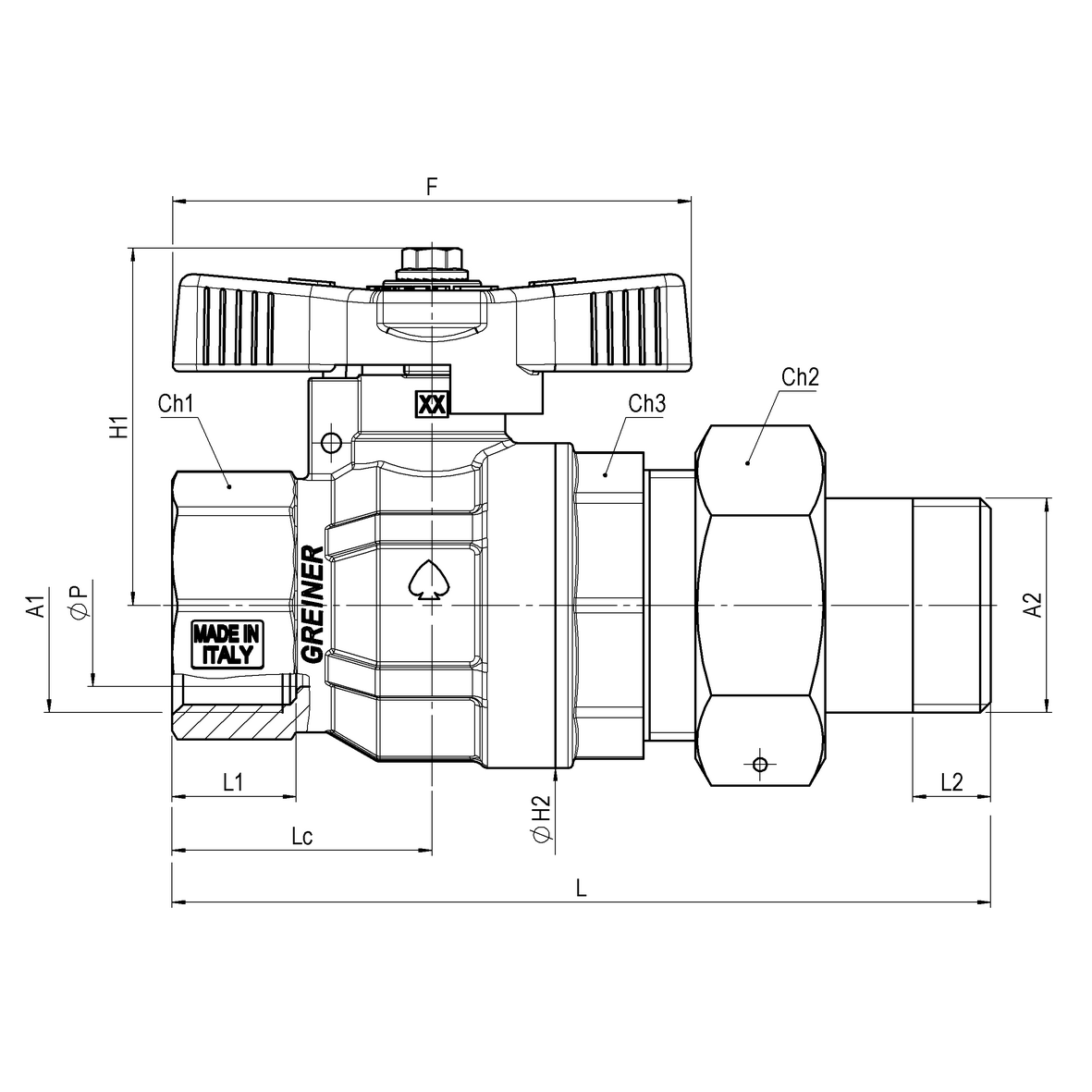

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65821400050 | 0,31 | 0,31 | 120 | 0 | 60 | 91,5 | 0 | 0 | 0 | 0 | 15 | 10 | 0 | Rp1/2 | G1/2 | F-M | 0 | 0 | 42 | 32 | 15 | 0 | 0 | 0 | 0 | 28 | 0 | ott.25 | ott.28 | es.30 | PN50 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65821400075 | 0,52 | 0,52 | 60 | 0 | 60 | 105 | 0 | 0 | 0 | 0 | 16,3 | 12 | 0 | Rp3/4 | G3/4 | F-M | 0 | 0 | 48 | 40 | 20 | 0 | 0 | 0 | 0 | 33 | 0 | ott.32 | es.37 | ott.35 | PN40 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65821400100 | 0,94 | 0,94 | 32 | 0 | 60 | 126 | 0 | 0 | 0 | 0 | 19,1 | 12 | 0 | Rp1 | G1 | F-M | 0 | 0 | 55 | 50 | 25 | 0 | 0 | 0 | 0 | 40 | 0 | ott.38.5 | es.48 | ott.44 | PN40 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
