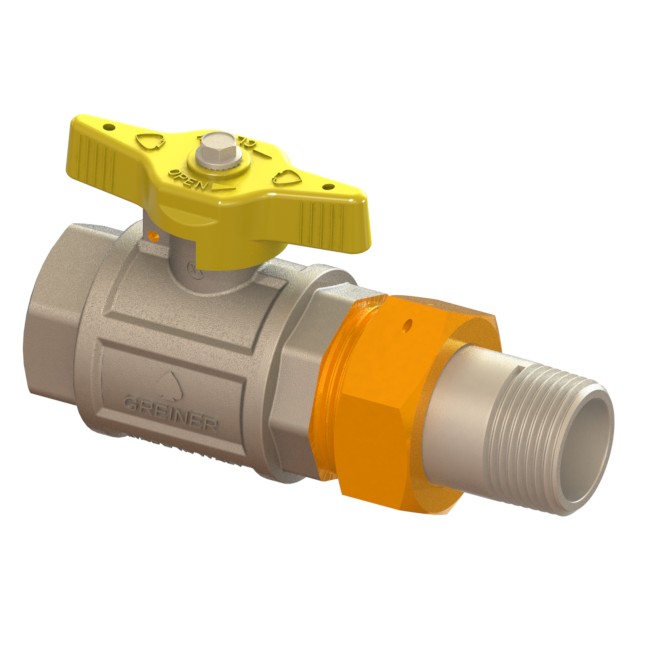

Gas full-bore ball valve, heavy execution, with yellow sealable T-handle FEMALE-MALE, pipe union OR

Application GAS

VALVES
Full-bore ball valves
Full

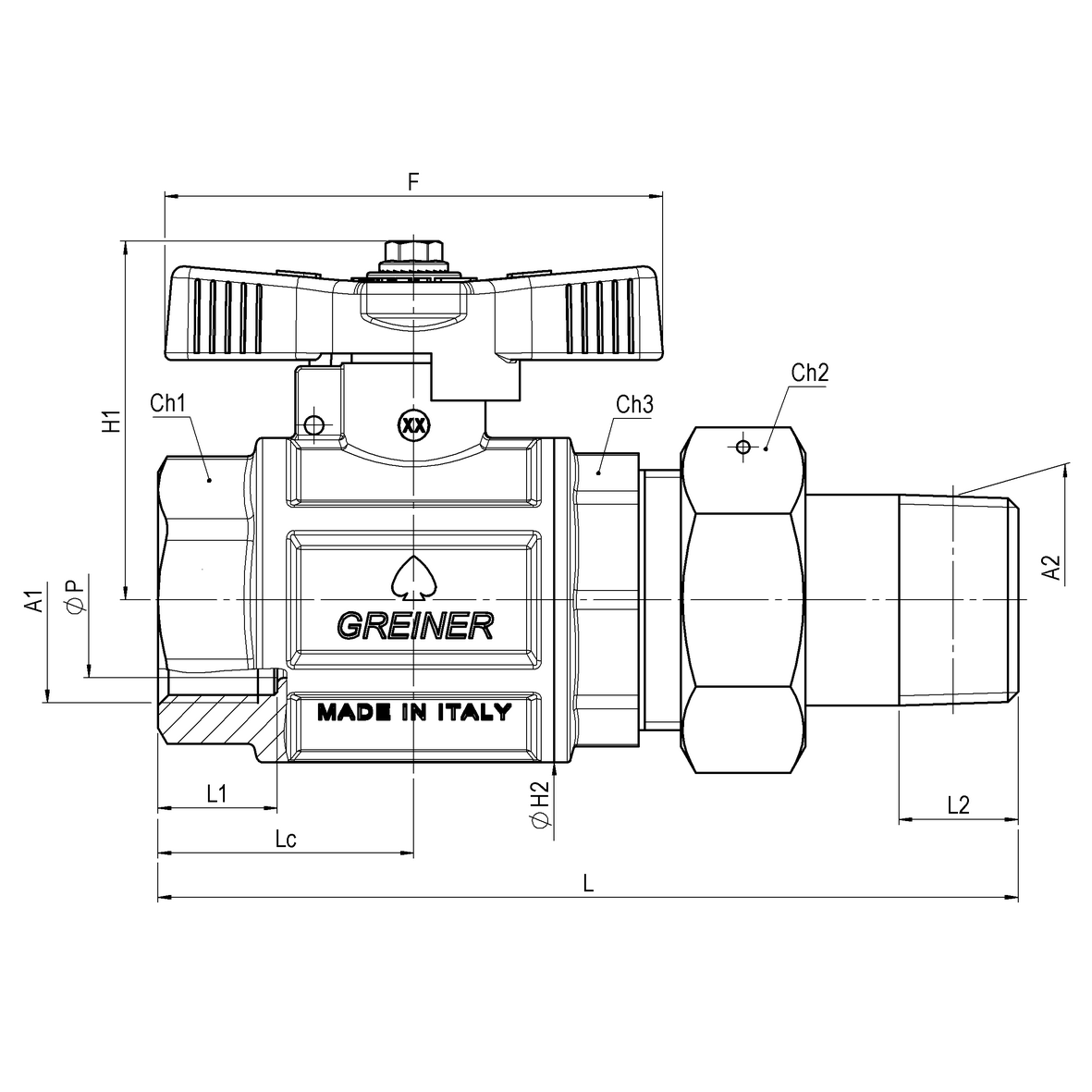

Code	Kg	Box	Master Box	F	L	L1	L2	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65441400050	0,37	0,37	80	60	93	15	10	Rp1/2	G1/2	F-M	-	46,5	0	15	29,2	es.27	es.30	ott.31	--	-	-	-	-	-	F generica
65441400075	0,71	0,71	40	80	109	16,3	12	Rp3/4	G3/4	F-M	-	53,2	42,5	20	34,3	es.33	ott.35	es.38.5	--	-	-	-	-	-	F generica
65441400100	1,14	1,14	32	80	138	19,1	19,1	Rp1	R1	F-M	0	56,5	52	25	41	es.41	es.48	ott.44	--	0	0	0	0	0	F generica
65441400125	1,61	1,61	24	110	162	21,4	21,4	Rp1.1/4	R1.1/4	F-M	0	70	63	32	46,5	ott.50	es.53	ott.50	--	0	0	0	0	0	F generica
