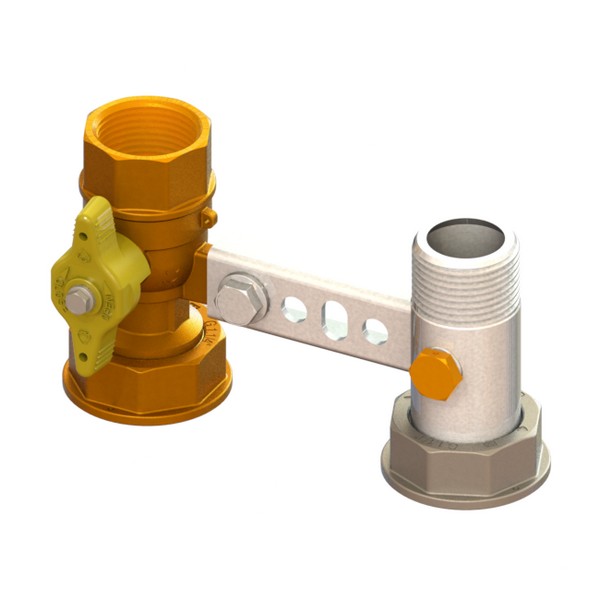

Bracket for gas meter L=110, inlet valve with yellow sealable T-handle, outlet tail with PCP FEMALE-MOVING NUT-MALE
Application GAS
GAS BRACKETS
Gas meter brackets
Gas meter brackets
| Code | Kg | Box | Master Box | M | F | NA | NA | NA | Le | Lu | Lb1 | Lb2 | ØB1 | Combinazione | Tipo Contatore | A1 | A2 | ØB2 | L1 | L2 | H1 | NA | d | ØT | ØP1 | ØP2 | NA | A3 | Q | PN-MOP | PCP1 | PCP2 | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | cod. | H2 | Ch1 | Ch2 | Ch3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65064400619 | 0,85 | 0,85 | 15 | 0 | 0 | 0 | 0 | 0 | 77 | 70,5 | 4,5 | 4 | 31 | F-Gi-M | G4 x 110 | Rp1 | G1.1/4 | 30 | 19,1 | 19,1 | 32,5 | 0 | 0 | 0 | 20 | 0 | 0 | G1 | - | - | G1/8 | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | 110 | ott.38 | ott.45 | - | |
| 65664400619 | 0,98 | 0,98 | 20 | 0 | 0 | 0 | 0 | 0 | 82,5 | 70,5 | 4,5 | 4 | 31 | F-Gi-F | G4 x 110 | Rp1 | G1.1/4 | 30,5 | 19 | 18 | 32,5 | 0 | 0 | 0 | 22 | 0 | 0 | G1 | - | MOP 0.5 | G1/4 | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | 110 | ott.38.5 | ott.45 | - |
