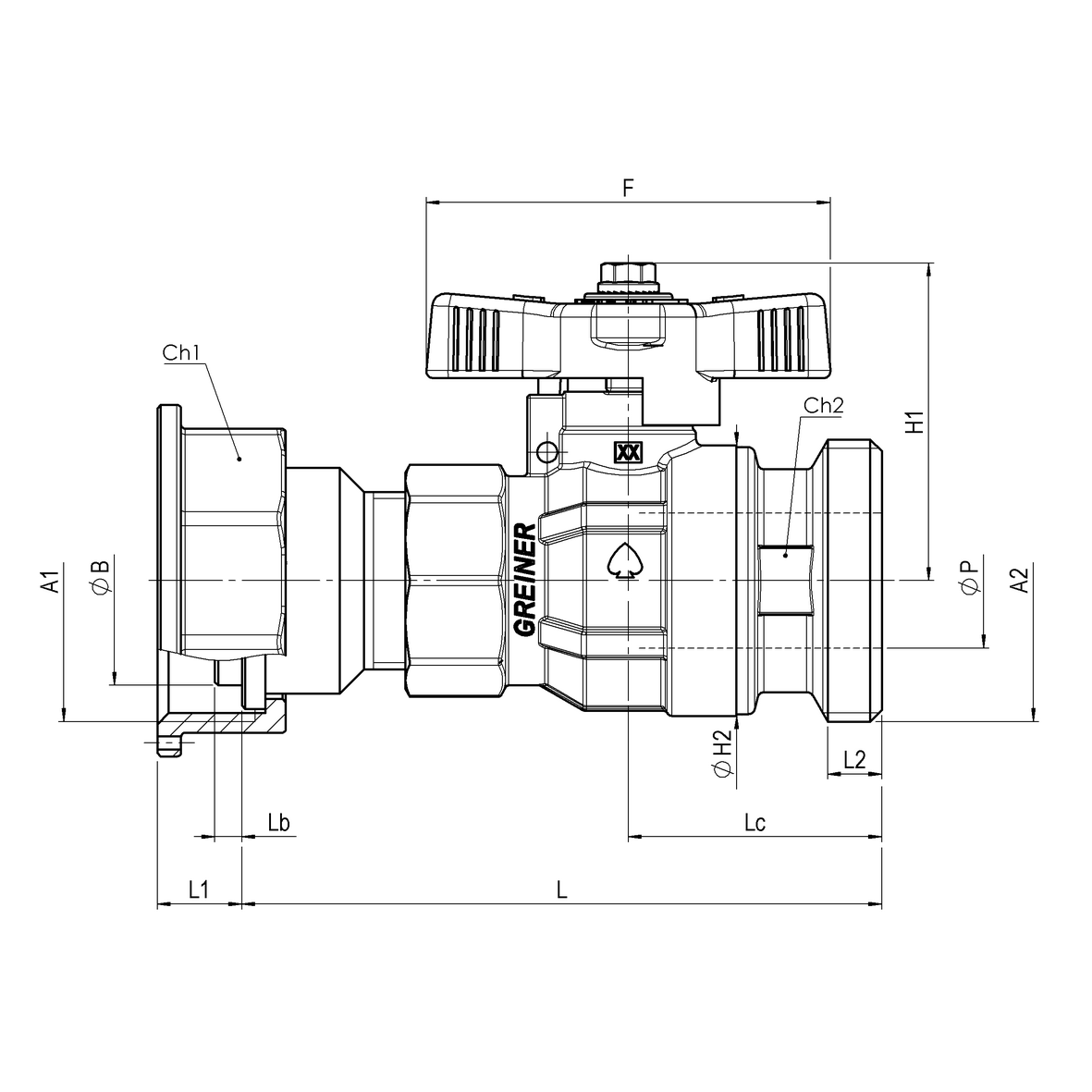

Gas meter reduced-bore inlet ball valve with yellow sealable T-handle MALE-MOVING NUT
Application GAS
VALVES
Ball valves for gas meters
Reduced
Ball valves for gas meters
Reduced
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65893500125 | 0,56 | 0,56 | 60 | 0 | 60 | 94,7 | 0 | 0 | 4 | 31 | 12,5 | 8 | 0 | G1.1/4 | G1.1/4 | Gi-M | 0 | 0 | 47 | 40 | 20 | 0 | 0 | 0 | 0 | 37,5 | 0 | ott.45 | ch.33 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Gi con bordino |
