Gas reduced-bore ball valve, standard series, with yellow sealable T-handle MALE-FEMALE

Application GAS

VALVES
Reduced-bore ball valves
Reduced

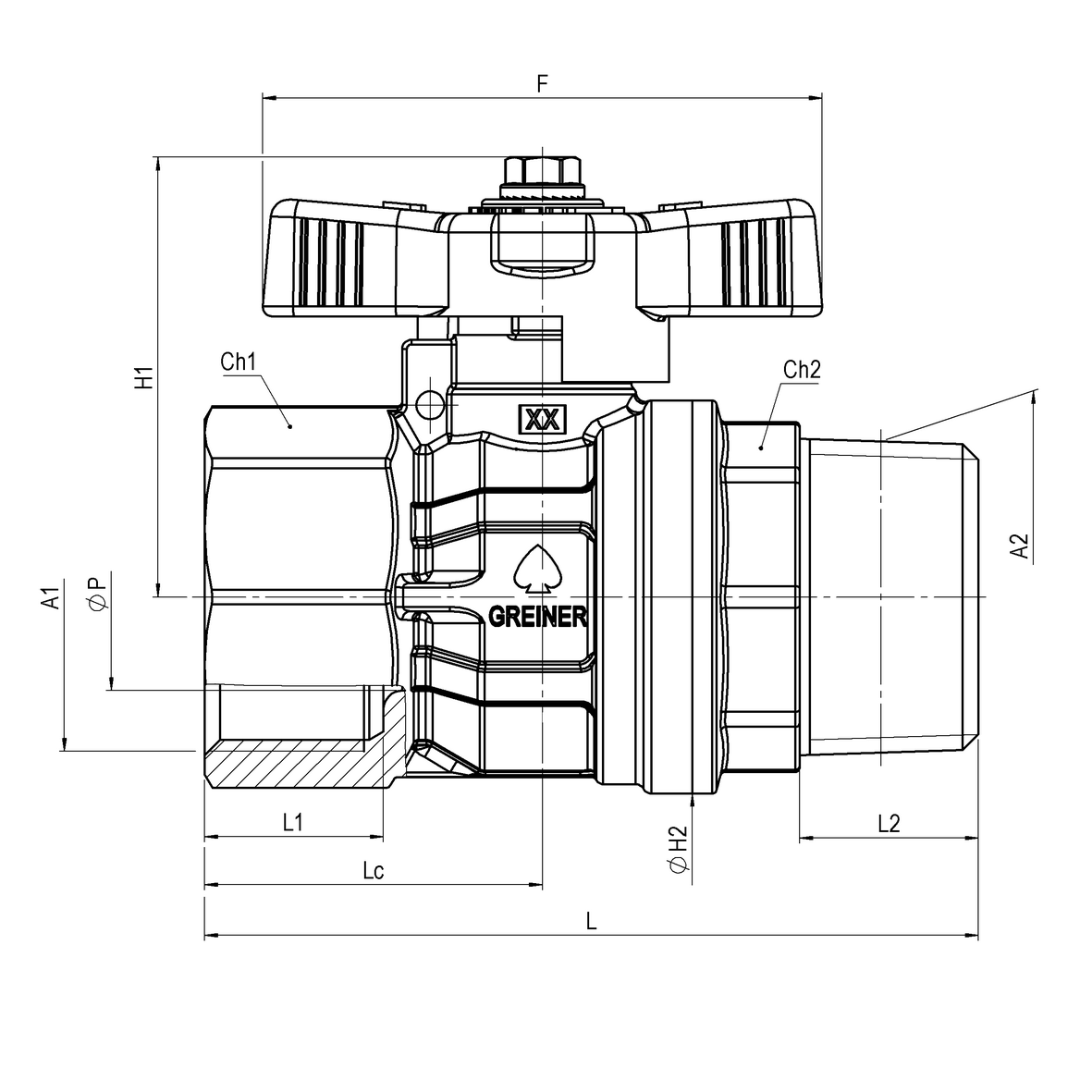

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
65229600100	0,46	0,46	60	0	60	82,7	0	0	0	0	19,1	19,1	0	Rp1	R1	F-M	-	0	47	42	20	0	0	0	0	36,1	0	ott.38	ott.35	-	--	-	0	0	0	0	0	0	0	0	0	0	-	-	-	-	F generica
65229600125	0,82	0,82	36	0	80	97	0	0	0	0	21,4	21,4	0	Rp1.1/4	R1.1/4	F-M	0	0	55	52	25	0	0	0	0	43,1	0	ott.48	ott.44	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65229600150	1,03	1,03	20	0	0	0	0	0	0	0	0	0	0	0	0	F-M	0	0	0	0	0	0	0	0	0	0	0	0	0	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65229600200	1,64	1,64	18	0	110	121,9	0	0	0	0	25,7	25,7	0	Rp2	R2	F-M	0	0	73,5	76	40	0	0	0	0	56,7	0	ott.67	ott.62	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica

Download scheme
