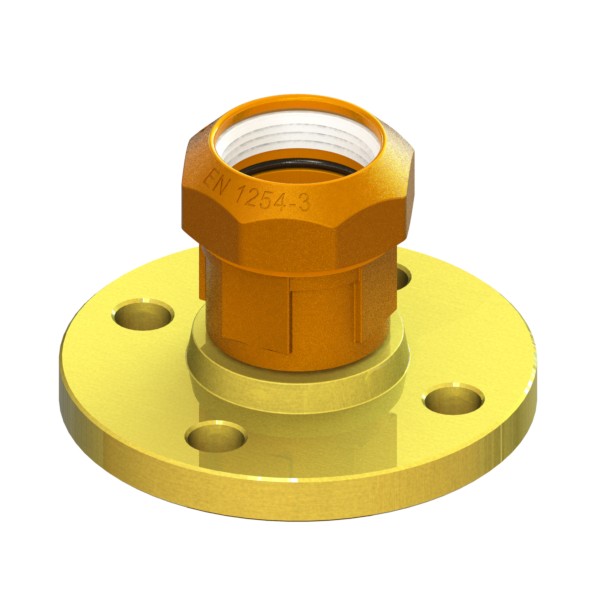

Compression fitting for PE PN16 pipe, PE-FL fixed
Application WATER
FITTINGS
Fittings for PE pipe
Fittings for PE pipe
| Code | Kg | Box | Master Box | NA | L | NA | ØDt | T1 | T2 | Lb | L1 | L2 | Lmax | Combinazione | A1 | A2 | A3 | Lmin | H | ØP1 | ØP2 | ØDf | ØB | ØD1 | ØD2 | NA | i | A4 | Ch1 | Ch2 | Ch3 | Ch4 | Ød | n | nf | NA | NA | NA | NA | NA | NA | NA | PN | PCP | NA | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44932700363 | 5,14 | 5,14 | 3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE-FL | Ø63 | DN65-PN16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | Flangia fissa | 0 | |
| 44932700750 | 2,74 | 2,74 | 6 | 0 | 95,5 | 0 | 51 | 62,5 | 0 | 0 | 0 | 0 | 0 | PE-FL | Ø50 | DN40-PN16 | 0 | 0 | 0 | 40 | 0 | 150 | 0 | 0 | 0 | 0 | 110 | 0 | ott.71 | ch.58 | 0 | 0 | 18 | 4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | Flangia fissa | 0 | |
| 44932700763 | 3,98 | 3,98 | 6 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE-FL | Ø63 | DN50-PN16 | 0 | 0 | 110 | 0 | 0 | 165 | 0 | 0 | 0 | 0 | 125 | 0 | 0 | 0 | 0 | 0 | 18 | 4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | Flangia fissa | 0 |
