Water full-bore ball valve, heavy execution, with check valve and survival device with B-Grip cap, FEMALE-FEMALE
Application WATER
VALVES
Ball valves with survival device
Full
Ball valves with survival device
Full

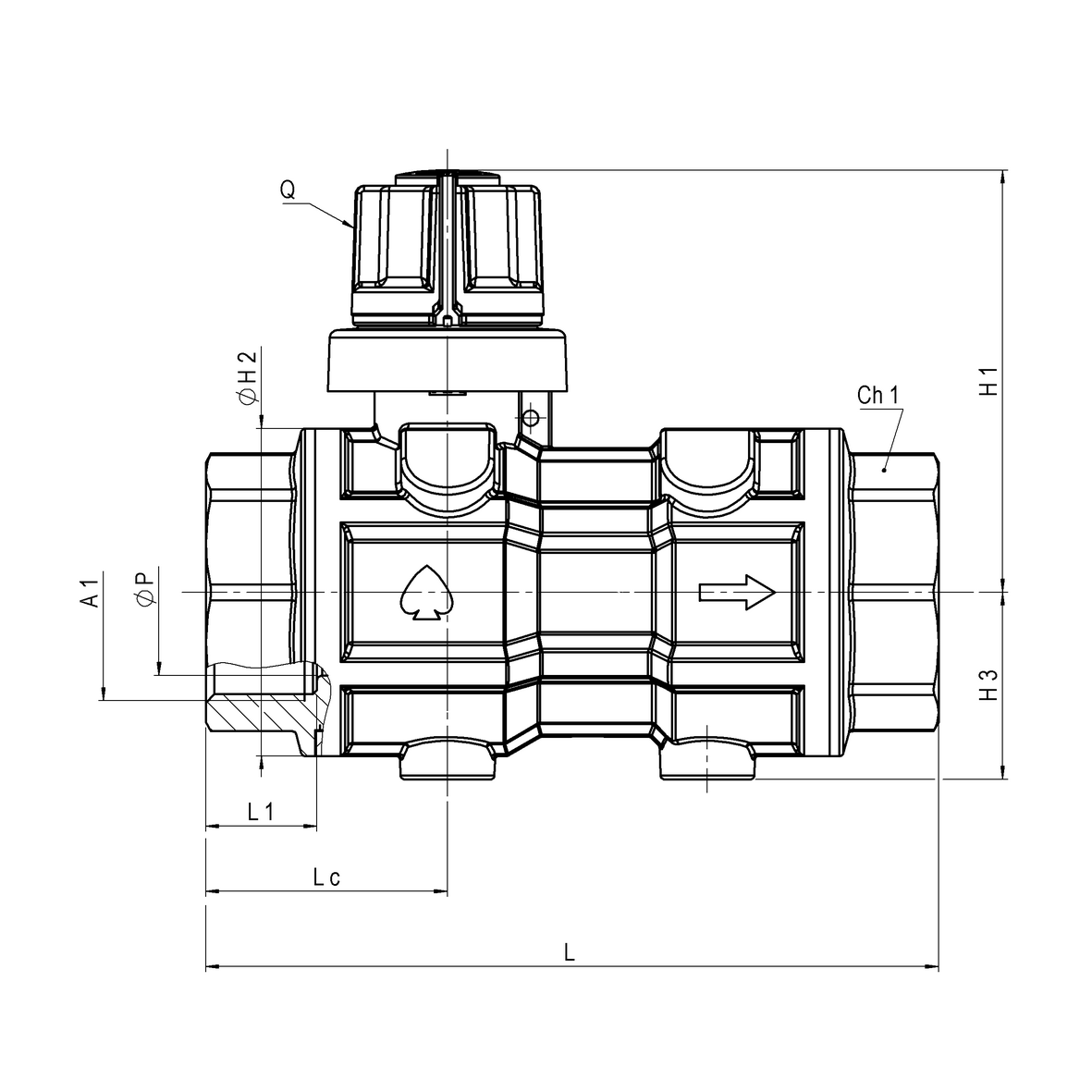

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65810600125 | 1,87 | 1,87 | 16 | 0 | 0 | 141 | 0 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/4 | - | F-F | 28 | 0 | 81 | 63 | 50 | 0 | 0 | 0 | 0 | 46,5 | 0 | ott.50 | - | - | PN40 | - | 0 | 36 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | Disp. B-Grip | F generica | |
| 65810600150 | 2,87 | 2,87 | 10 | 0 | 0 | 168 | 0 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/2 | 0 | F-F | 28 | 0 | 88 | 77 | 40 | 0 | 0 | 0 | 0 | 52,5 | 0 | ott.56 | 0 | 0 | PN40 | 0 | 0 | 43,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | F generica | |
| 65810600200 | 4,82 | 4,82 | 8 | 0 | 0 | 200 | 0 | 0 | 0 | 0 | 25,7 | 0 | 0 | Rp2 | - | F-F | 28 | 0 | 103 | 93 | 50 | 0 | 0 | 0 | 0 | 62,5 | 0 | ott.70 | - | - | PN25 | - | 0 | 51,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | Disp. B-Grip | F generica |
