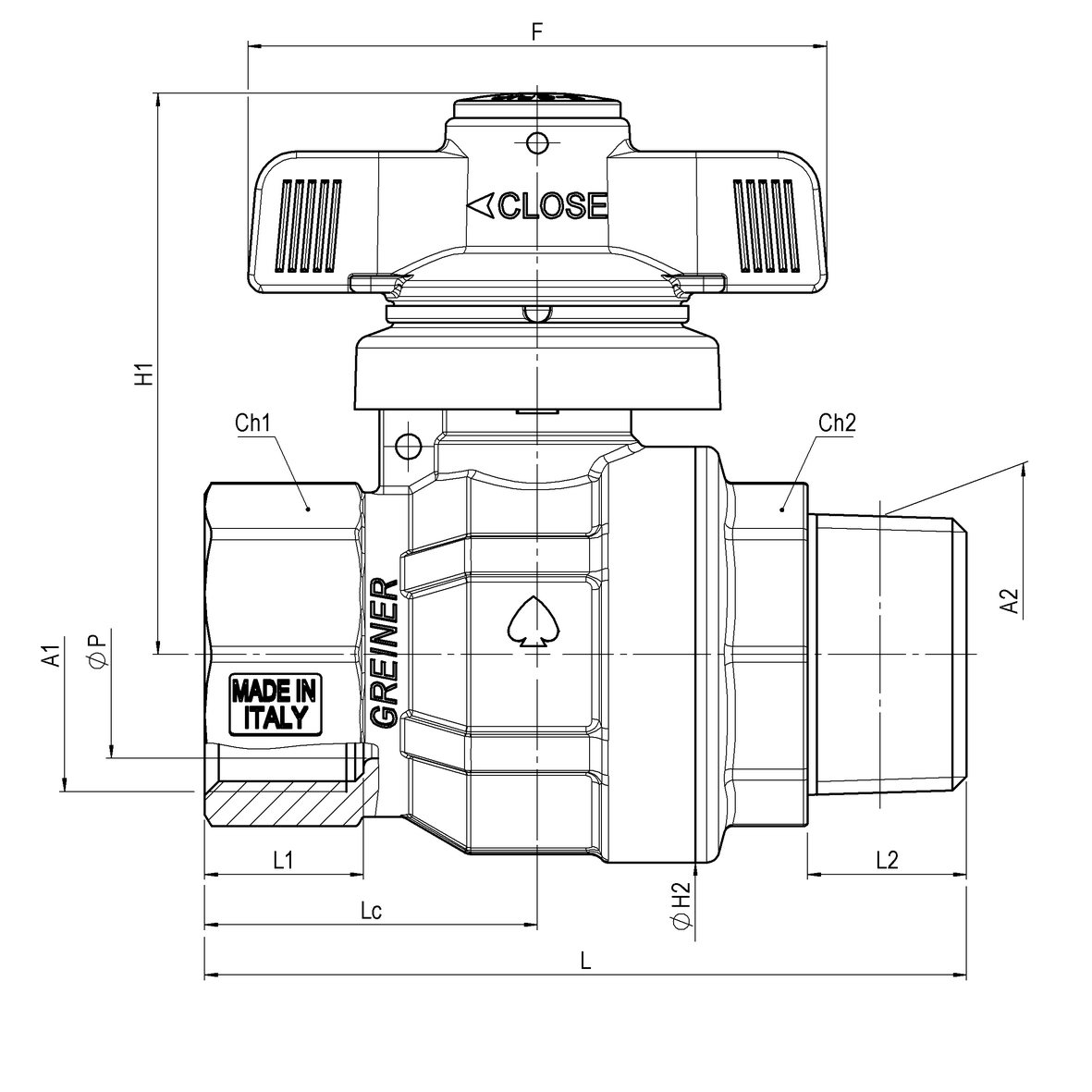

Water full-bore ball valve, standard series, with tamper-proof B-Grip T-handle, MALE-FEMALE
Application WATER
VALVES
Ball valves with tamper-proof device
Full
Ball valves with tamper-proof device
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65822200075 | 0,49 | 0,49 | 72 | 0 | 55 | 76,3 | 0 | 0 | 0 | 0 | 16,3 | 16,3 | 0 | Rp3/4 | R3/4 | F-M | 0 | 0 | 59 | 40 | 20 | 0 | 0 | 0 | 0 | 33 | 0 | ott.32 | ott.32 | 0 | PN40 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | F generica |
