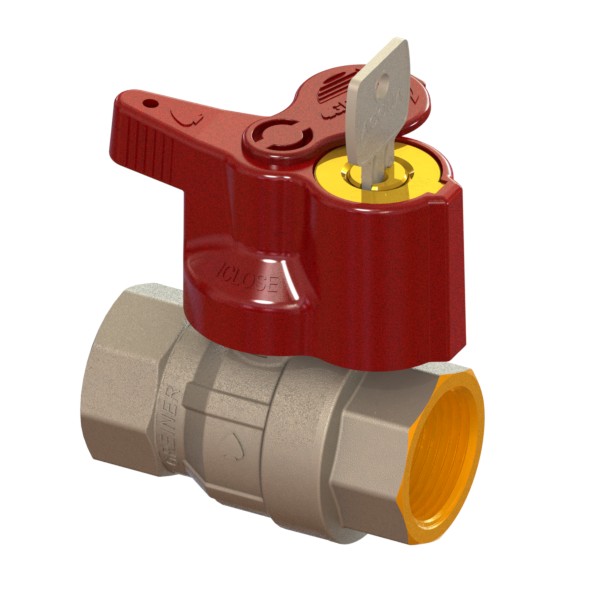

Water full-bore ball valve, heavy execution, arrearage lock with automatic lock 0901, with red T-handle, FEMALE-FEMALE
Application WATER
VALVES
Ball valves with tamper-proof device
Full
Ball valves with tamper-proof device
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65827700050 | 0,32 | 0,32 | 50 | 0 | 71 | 56 | 0 | 0 | 0 | 0 | 15 | 0 | 0 | Rp1/2 | - | F-F | - | 0 | 55,5 | 32 | 15 | 0 | 0 | 0 | 0 | 28 | 0 | ott.25 | ott.25 | - | PN50 | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | 901 | - | Serratura | F generica | |
| 65827700075 | 0,46 | 0,46 | 50 | 0 | 71 | 66 | 0 | 0 | 0 | 0 | 16,3 | 0 | 0 | Rp3/4 | - | F-F | - | 0 | 59 | 40 | 20 | 0 | 0 | 0 | 0 | 33 | 0 | ott.32 | ott.32 | - | PN40 | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | 901 | - | Serratura | F generica |
