Water full-bore, bronze ball valve, heavy execution, with sealable T-handle IRON-PE
Application WATER
VALVES
Bronze full-bore ball valves
Full
Bronze full-bore ball valves
Full

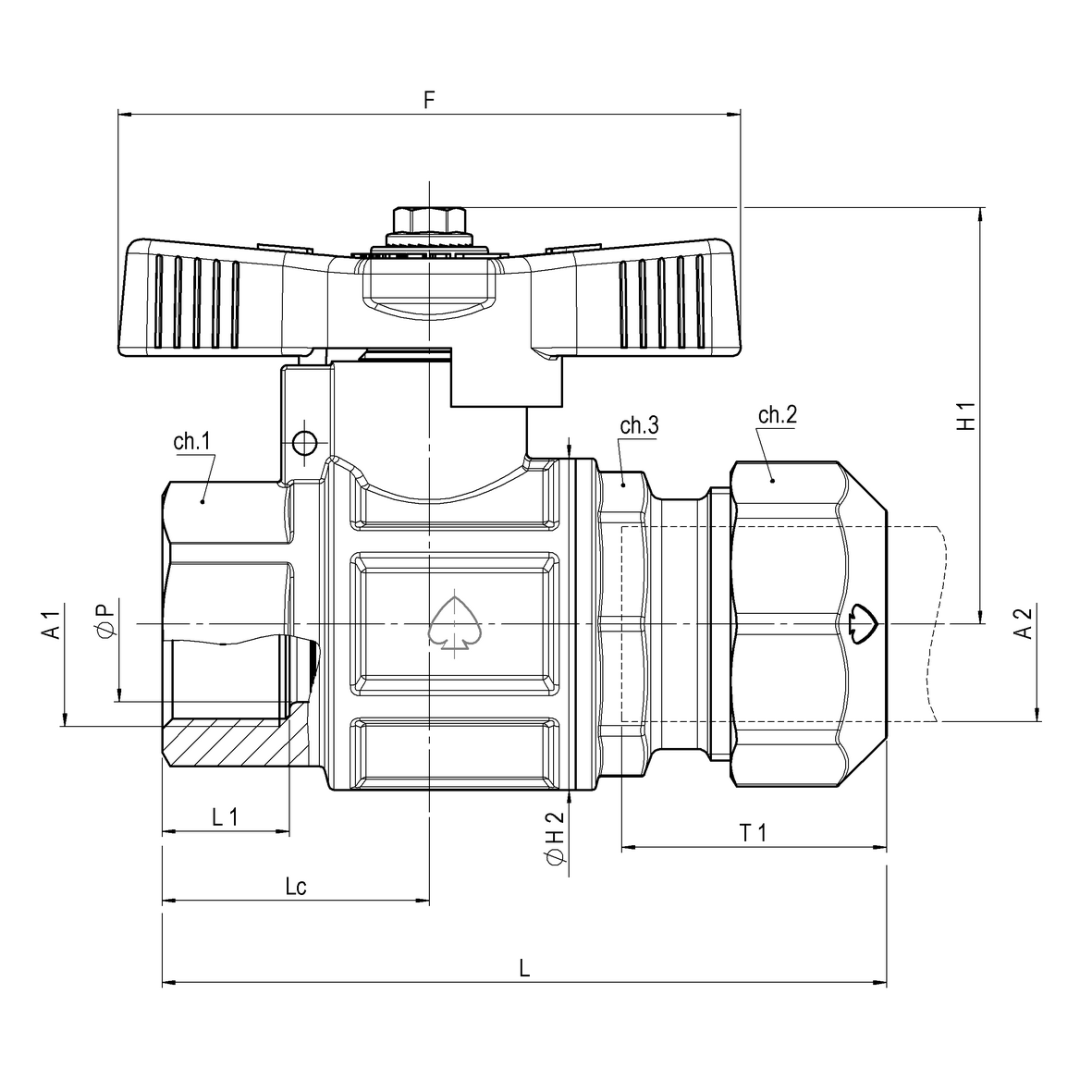

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 66524500050 | 0,34 | 0,34 | 80 | 0 | 60 | 79,1 | 34,2 | 0 | 0 | 0 | 15 | 0 | 0 | Rp1/2 | Ø20 | F-PE | 0 | 0 | 47,7 | 33 | 15 | 0 | 0 | 0 | 0 | 29,2 | 0 | es.27 | ott.32 | ott.31 | PN16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 66524500075 | 0,65 | 0,65 | 48 | 0 | 80 | 92,9 | 39,9 | 0 | 0 | 0 | 16,3 | 0 | 0 | Rp3/4 | Ø25 | F-PE | 0 | 0 | 53,4 | 42,5 | 20 | 0 | 0 | 0 | 0 | 34,25 | 0 | es.33 | ott.39 | ott.36.5 | PN16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 66524500100 | 0,99 | 0,99 | 30 | 0 | 80 | 108,5 | 43 | 0 | 0 | 0 | 19,1 | 0 | 0 | Rp1 | Ø32 | F-PE | 0 | 0 | 57,7 | 52 | 25 | 0 | 0 | 0 | 0 | 41 | 0 | es.41 | ott.49 | ott.46 | PN16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
