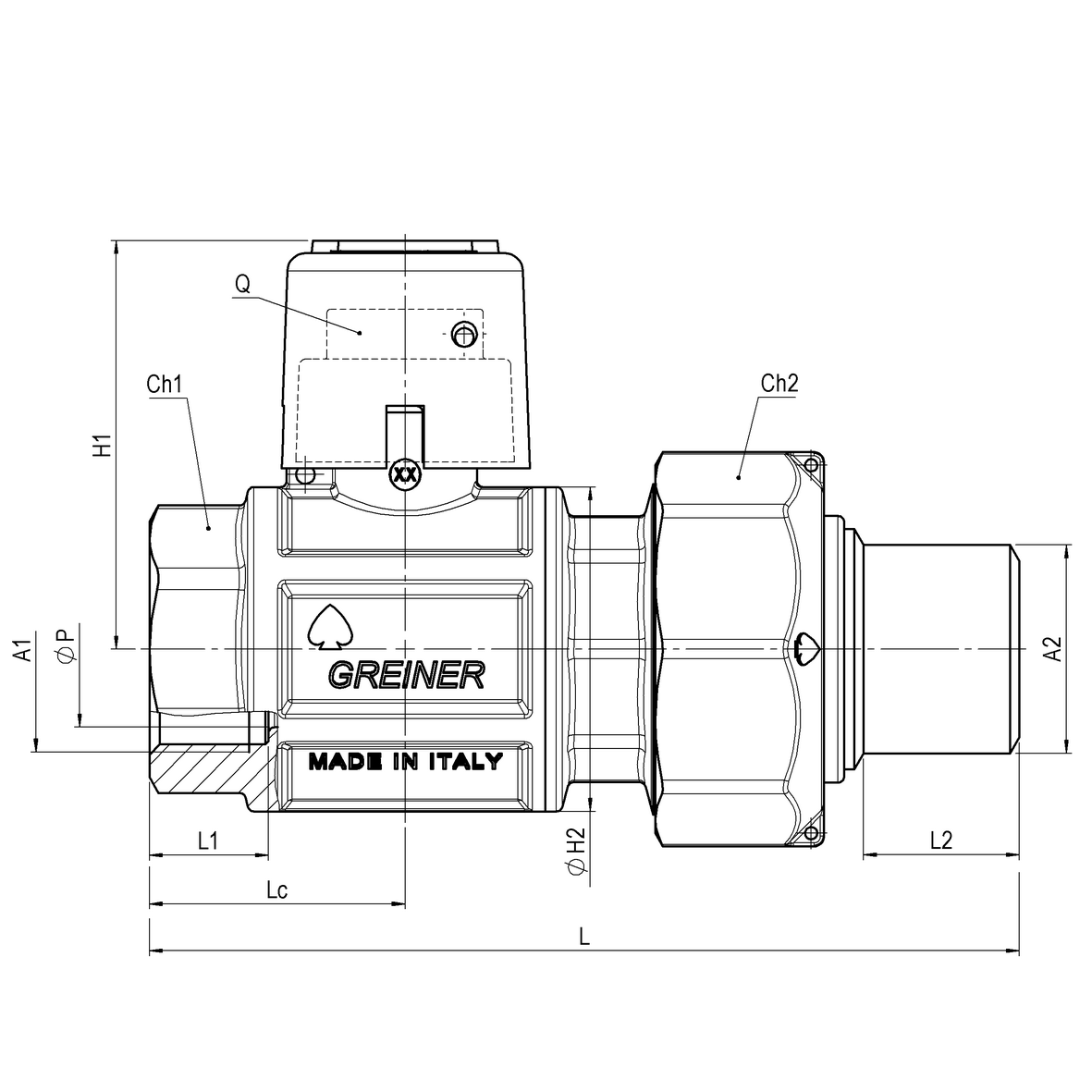

Gas full-bore ball valve, heavy execution, with dielectric joint, yellow sealable cap FEMALE-IRON to be welded
Application GAS
JOINTS
Dielectric joints
Full
Dielectric joints
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65483300100 | 1,64 | 1,64 | 24 | 0 | 0 | 139,5 | 0 | 0 | 0 | 0 | 19,1 | 25 | 0 | Rp1 | 1 | F-Fe | 12x25 | 0 | 65,5 | 52 | 25 | 0 | 0 | 0 | 0 | 41 | 0 | es.41 | ott.59 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
