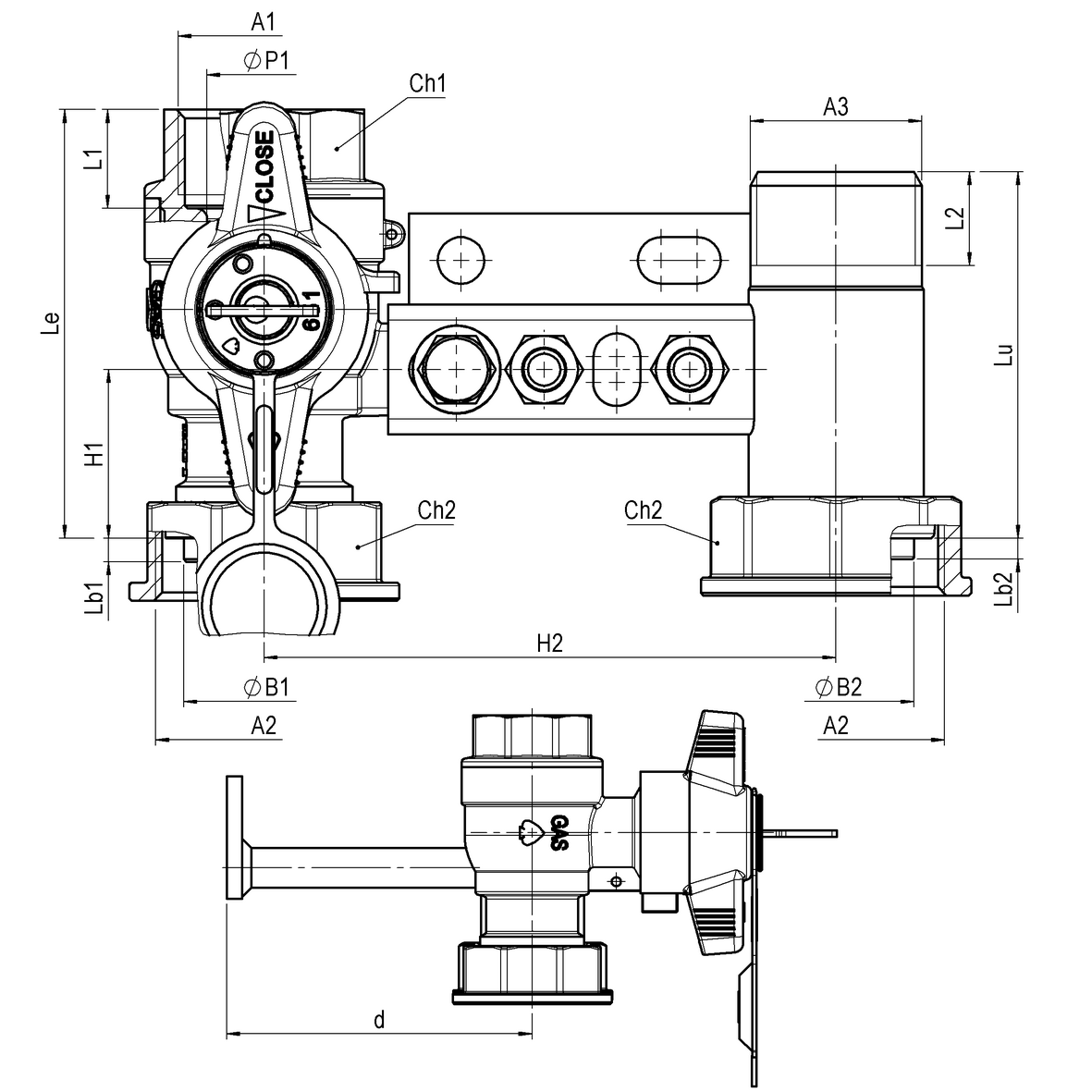

Bracket for gas meter L=110, inlet valve with DFA lock 651 to 685, outlet tail with 2 pins FEMALE-MOVING NUT-MALE

Application GAS

GAS BRACKETS
Gas meter brackets

Code	Kg	Box	Master Box	M	F	NA	NA	NA	Le	Lu	Lb1	Lb2	ØB1	Combinazione	Tipo Contatore	A1	A2	ØB2	L1	L2	H1	NA	d	ØT	ØP1	ØP2	NA	A3	Q	PN-MOP	PCP1	PCP2	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	cod.	H2	Ch1	Ch2	Ch3
65966800612	1,32	1,32	15	0	0	0	0	0	75,5	72	4	4	30	F-Gi-M	-	Rp3/4	G1.1/4	30	16,3	16,3	32,5	0	100	0	16	0	0	R3/4	-	-	-	-	0	0	0	0	0	0	0	0	0	0	651-685	110	es.31.5	ott.45	-
65966800616	1,33	1,33	20	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	110	0	0	0
65966800619	1,52	1,52	20	0	0	0	0	0	82,5	70,5	4,5	4	31	F-Gi-M	-	Rp1	G1.1/4	30	19	18	32,5	0	100	0	22	0	0	G1	-	-	-	-	0	0	0	0	0	0	0	0	0	0	651-685	110	ott.38.5	ott.45	-

Download scheme
