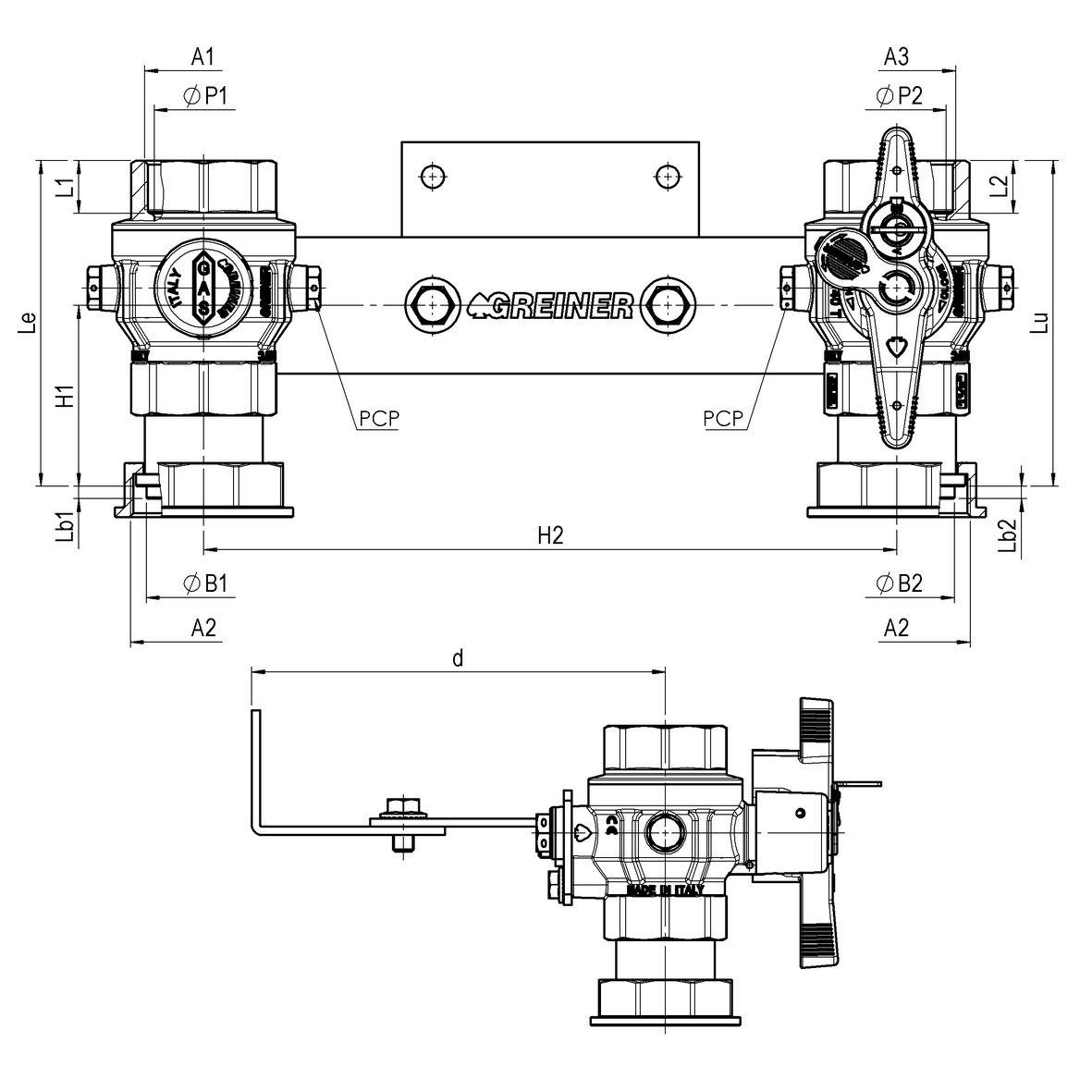

Bracket for gas meter L=250 inlet valve with 2 PCP 1 PST with yellow sealable cap and outlet valve with lock 301 to 340 with 2 PCPs 1 PST with adjustable support FEMALE-MOVING NUT-FEMALE
Application GAS
GAS BRACKETS
Gas meter brackets
Gas meter brackets
| Code | Kg | Box | Master Box | M | F | NA | NA | NA | Le | Lu | Lb1 | Lb2 | ØB1 | Combinazione | Tipo Contatore | A1 | A2 | ØB2 | L1 | L2 | H1 | NA | d | ØT | ØP1 | ØP2 | NA | A3 | Q | PN-MOP | PCP1 | PCP2 | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | cod. | H2 | Ch1 | Ch2 | Ch3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65864500625 | 5,65 | 5,65 | 3 | 0 | 0 | 0 | 0 | 0 | 131,6 | 131,6 | 5 | 5 | 46,5 | F-Gi-F | G16 x 250 | Rp1.1/2 | G2 | 46,5 | 21,4 | 21,4 | 73,1 | 0 | 199 | 0 | 40 | 40 | 0 | Rp1.1/2 | 0 | MOP 0.5 | G1/4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 301-340 | 250 | 0 | 0 | 0 |
