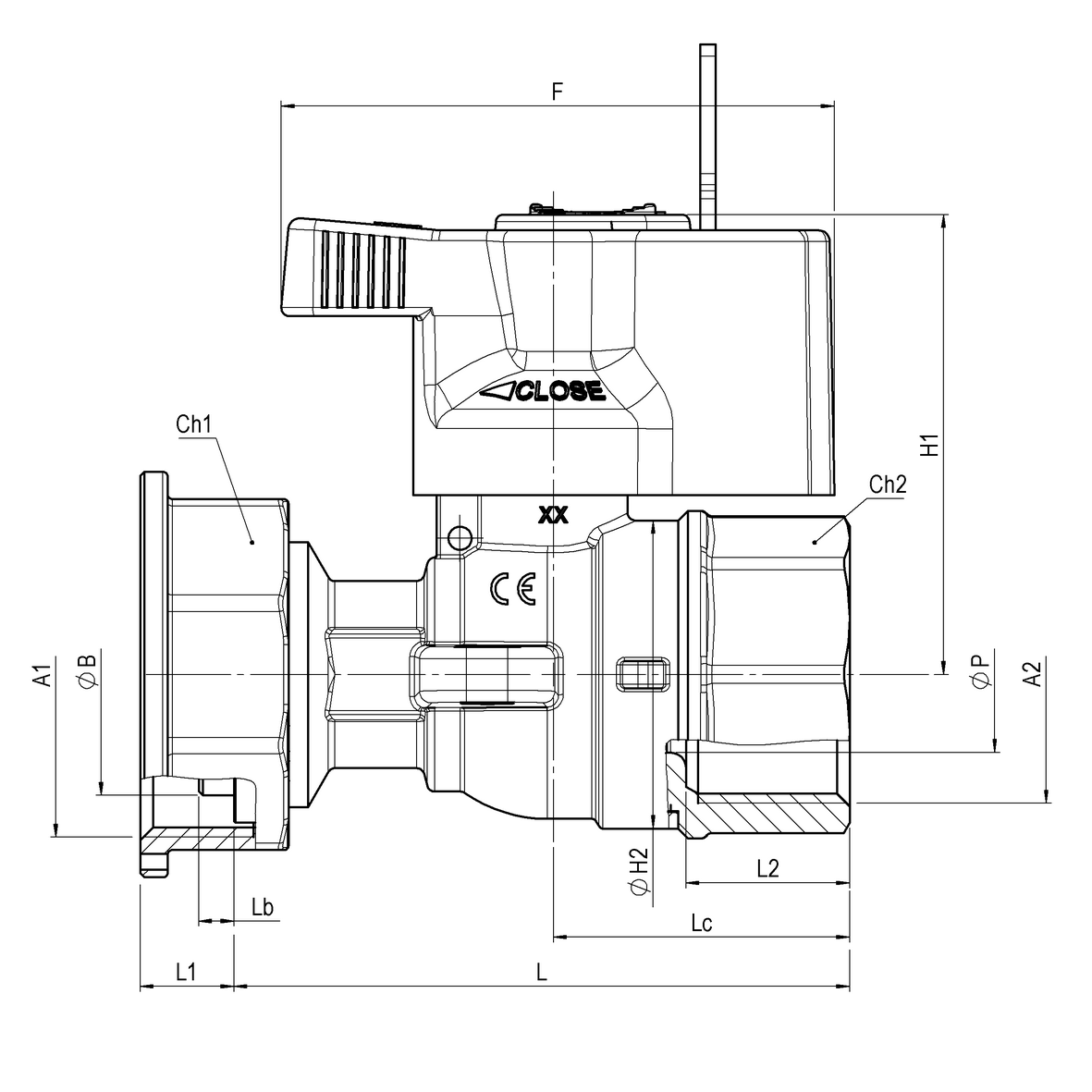

Gas meter reduced-bore inlet ball valve with mounting ear with safety and arrearage lock 301 to 340 FEMALE-MOVING NUT
Application GAS
VALVES
Ball valves for gas meters
Reduced
Ball valves for gas meters
Reduced
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65160031616 | 0,51 | 0,51 | 40 | 0 | 71 | 71 | 0 | 0 | 4 | 30 | 13 | 16,8 | 0 | G1.1/4 | Rp3/4 | Gi-F | 0 | 0 | 56,2 | 34 | 16 | 0 | 0 | 0 | 0 | 33,5 | 0 | ott.45 | ott.32 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 301-340 | 0 | Serratura | Gi con bordino | |
| 65160031619 | 0,59 | 0,59 | 40 | 0 | 71 | 77 | 0 | 0 | 4,5 | 31 | 19,1 | 12 | 0 | Rp1 | G1.1/4 | F-Gi | 0 | 0 | 59,3 | 39,5 | 20 | 0 | 0 | 0 | 0 | 36 | 0 | ott.45 | ott.38 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 301-340 | 0 | Serratura | F generica | |
| 65760031619 | 0,6 | 0,6 | 40 | 0 | 71 | 79 | 0 | 0 | 4,5 | 31 | 21 | 0 | 0 | Rp1 | G1.1/4 | F-Gi | 0 | 0 | 59,3 | 41,5 | 22 | 0 | 0 | 0 | 0 | 0 | 0 | ott.38 | ott.45 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 301-340 | 0 | 0 | 0 |
