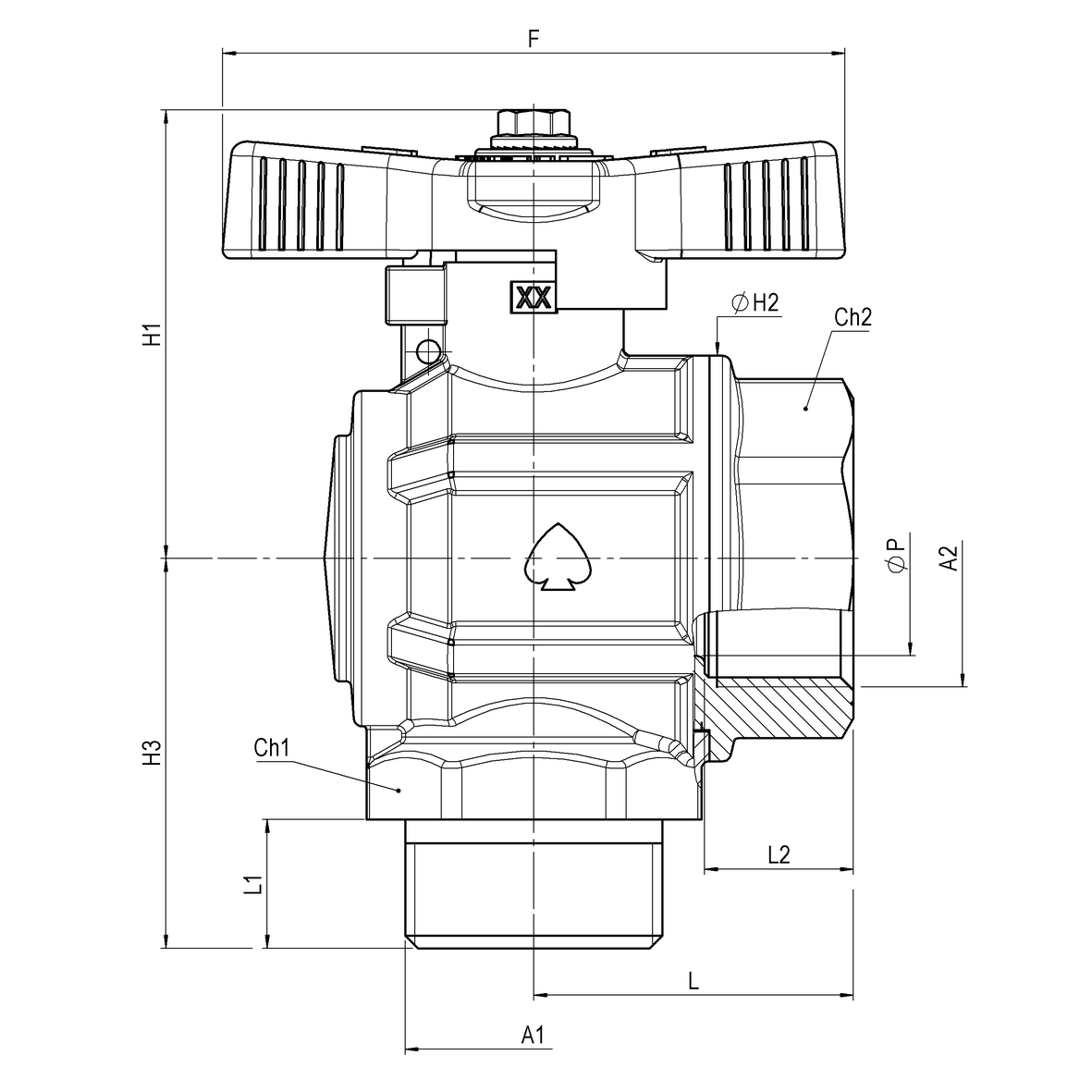

Gas full-bore, right-angle ball valve, heavy execution, with yellow sealable T-handle MALE-FEMALE
Application GAS
VALVES
Right-angle ball valves
Full
Right-angle ball valves
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 67522600100 | 0,75 | 0,75 | 36 | 0 | 80 | 41 | 0 | 0 | 0 | 0 | 16,5 | 19,1 | 0 | G1 | G1 | M-F | - | 0 | 57,5 | 52 | 25 | 0 | 0 | 0 | 0 | 0 | 0 | es.38 | es.41 | - | -- | - | 0 | 50 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | - | M generico |
