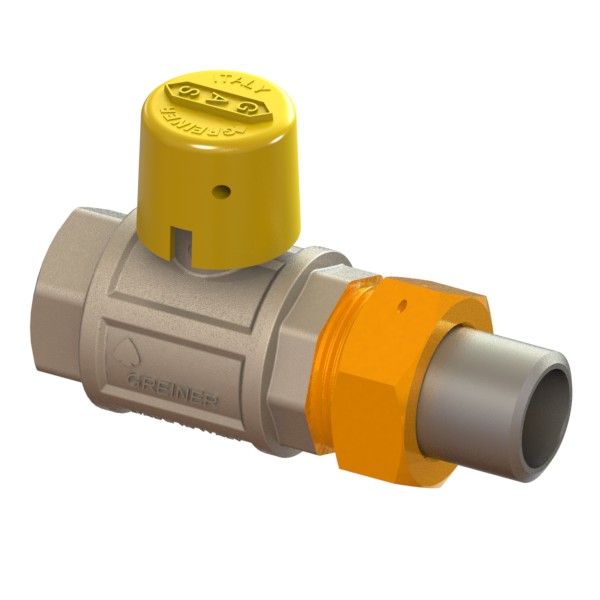

Gas full-bore ball valve, heavy execution, with yellow sealable cap FEMALE-IRON for welding pipe union OR
Application GAS
VALVES
Full-bore ball valves
Full
Full-bore ball valves
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65573900100 | 1,13 | 1,13 | 20 | 0 | 0 | 131 | 0 | 0 | 0 | 0 | 19,1 | 26,5 | 0 | Rp1 | 1 | F-Fe | 12x25 | 0 | 66 | 52 | 25 | 0 | 0 | 0 | 0 | 41 | 0 | es.41 | es.48 | ott.44 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65573900125 | 1,53 | 1,53 | 24 | 0 | 0 | 140 | 0 | 0 | 0 | 0 | 21,4 | 25 | 0 | Rp1.1/4 | 1.1/4 | F-Fe | 12x25 | 0 | 76 | 63 | 32 | 0 | 0 | 0 | 0 | 46,5 | 0 | ott.50 | es.53 | ott.50 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65573900150 | 1,47 | 1,47 | 12 | 0 | 0 | 158 | 0 | 0 | 0 | 0 | 21,4 | 20 | 0 | Rp1.1/2 | 1.1/2 | F-Fe | 12x25 | 0 | 83 | 77 | 40 | 0 | 0 | 0 | 0 | 52,5 | 0 | ott.56 | es.69 | ott.62 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
