Bracket for multi-jet water meter DN15 with zinc-coated steel fixed pulling-safe bracket with fixed fittings MALE-MOVING NUT and telescopic MOVING NUT-MALE
Application WATER
WATER BRACKETS
Bracket for multi-jet water meter
Bracket for multi-jet water meter

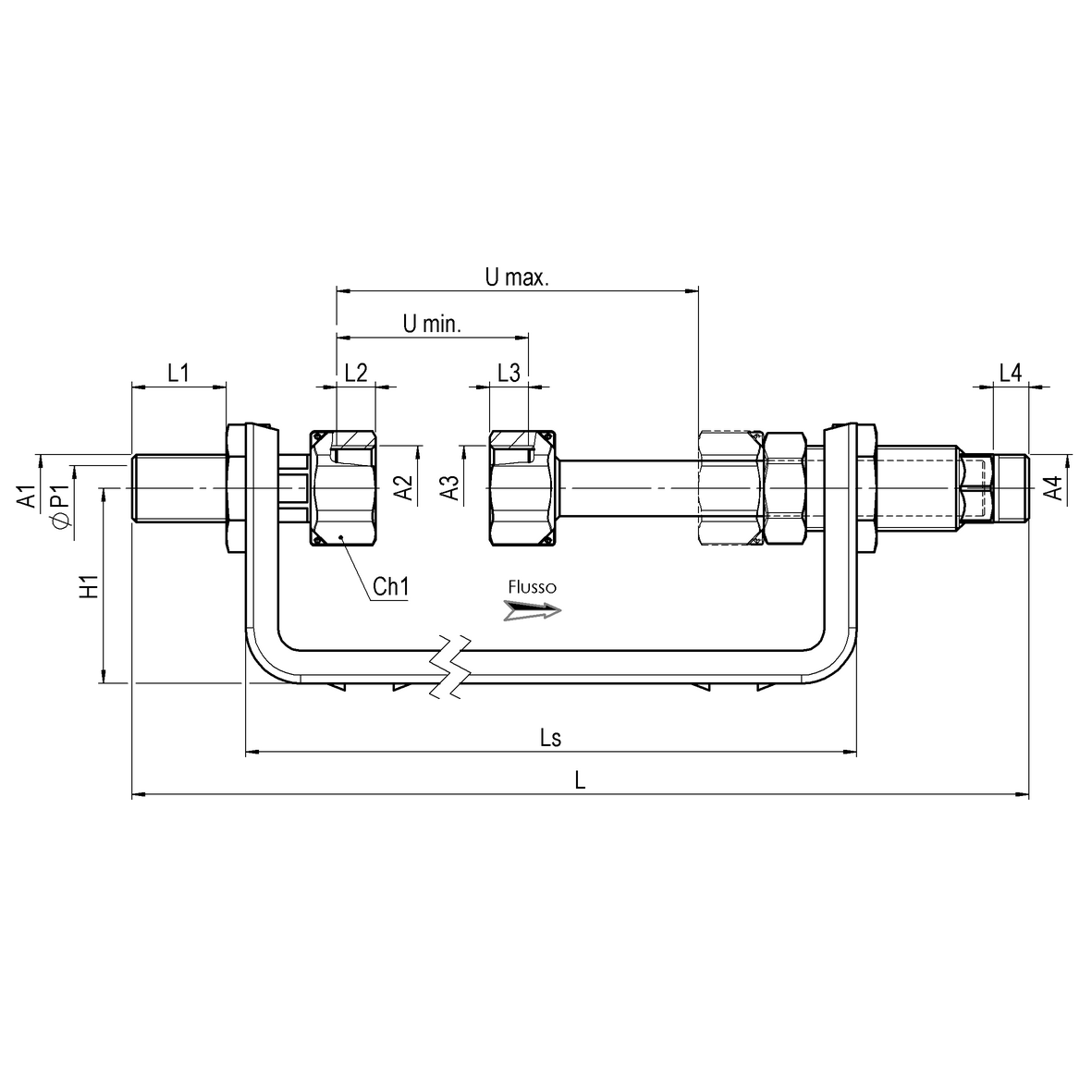

| Code | Kg | Box | Master Box | L | Ls | Umin | Umax | Lb1 | Lb2 | ØB1 | ØB2 | L1 | L2 | Combinazione | A1 | A2 | Tipo Contatore | H1 | H2 | ØP1 | ØP2 | Ch1 | Ch2 | NA | NA | NA | NA | A3 | A4 | PN-MOP | PCP | cod. | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 79216400050 | 0,85 | 0,85 | 10 | 318 | 230 | 101 | 153 | 0 | 0 | 0 | 0 | 29 | 12 | M-Gi-Gi-M | G1/2 | G3/4 | DN15-1/2-L=110 e 145 | 60 | 0 | 14 | 0 | 0 | 0 | 12 | 11 | 0 | 0 | G3/4 | G1/2 | - | - | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | es.31.5 | - | Supp. fisso anti-sfilamento | tenuta piana | - |
