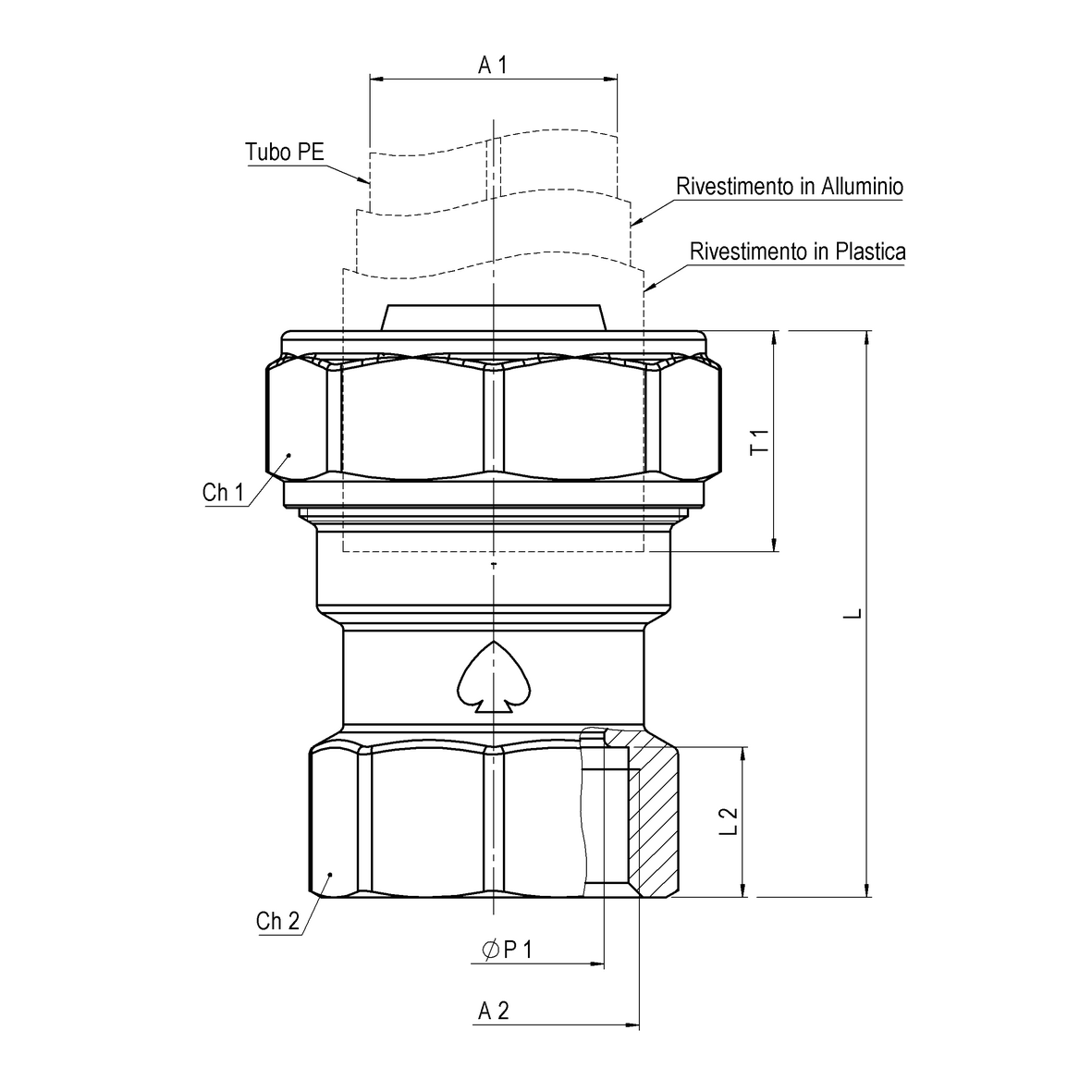

Compression fitting in CR brass for barrier multi-layer PE pipe, PE-FEMALE

Application WATER

FITTINGS
Fittings for PE pipe

Code	Kg	Box	Master Box	NA	L	NA	ØDt	T1	T2	Lb	L1	L2	Lmax	Combinazione	A1	A2	A3	Lmin	H	ØP1	ØP2	ØDf	ØB	ØD1	ØD2	NA	i	A4	Ch1	Ch2	Ch3	Ch4	Ød	n	nf	NA	NA	NA	NA	NA	NA	NA	PN	PCP	NA	NA	NA
43730000075	0,23	0,23	150	0	0	0	0	0	0	0	0	0	0	PE-F	3/4	G3/4	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico MTSC	F generica	0
43730000100	0,33	0,33	80	0	0	0	0	0	0	0	0	0	0	PE-F	1	G1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico MTSC	F generica	0
43730000125	0,64	0,64	48	0	0	0	0	0	0	0	0	0	0	PE-F	1.1/4	G1.1/4	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico MTSC	F generica	0
43730000150	1,1	1,1	30	0	0	0	0	0	0	0	0	0	0	PE-F	1.1/2	G1.1/2	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico MTSC	F generica	0
43730000200	1,71	1,71	20	0	0	0	0	0	0	0	0	0	0	PE-F	2	G2	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico MTSC	F generica	0

Download scheme
