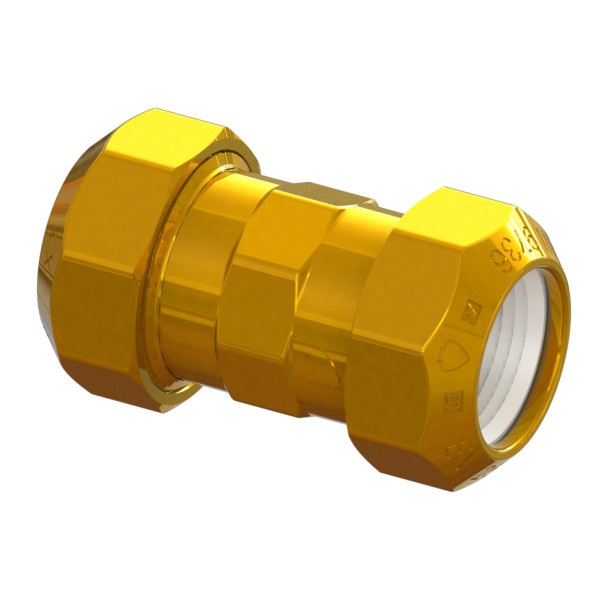

Compression fitting in CR brass for PE PN16 pipe, double PE-PE

Application WATER

FITTINGS
Fittings for PE pipe

Code	Kg	Box	Master Box	NA	L	NA	ØDt	T1	T2	Lb	L1	L2	Lmax	Combinazione	A1	A2	A3	Lmin	H	ØP1	ØP2	ØDf	ØB	ØD1	ØD2	NA	i	A4	Ch1	Ch2	Ch3	Ch4	Ød	n	nf	NA	NA	NA	NA	NA	NA	NA	PN	PCP	NA	NA	NA
43960000720	0,14	0,14	200	0	60	0	0	29	0	0	0	0	0	PE-PE	Ø20	0	0	0	0	15	0	0	0	0	0	0	0	0	ott.25	ott.32	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico st	0	0
43960000725	0,24	0,24	100	0	76	0	0	36,25	36,25	0	0	0	0	PE-PE	Ø25	0	0	0	0	20	0	0	0	0	0	0	0	0	ott.31	ott.39	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico st	0	0
43960000732	0,38	0,38	50	0	88	0	0	42,5	0	0	0	0	0	PE-PE	Ø32	0	0	0	0	25	0	0	0	0	0	0	0	0	ott.39	ott.49	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico st	0	0
43960000740	0,64	0,64	32	0	108	0	0	52,5	0	0	0	0	0	PE-PE	Ø40	0	0	0	0	32	0	0	0	0	0	0	0	0	ott.48	ott.58	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico st	0	0
43960000750	1,06	1,06	36	0	127	0	0	62,5	0	0	0	0	0	PE-PE	Ø50	0	0	0	0	40	0	0	0	0	0	0	0	0	ott.58	ott.71	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico st	0	0
43960000763	1,88	1,88	12	0	158	0	0	77	0	0	0	0	0	PE-PE	Ø63	0	0	0	0	50	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE serraggio meccanico st	0	0

Download scheme
