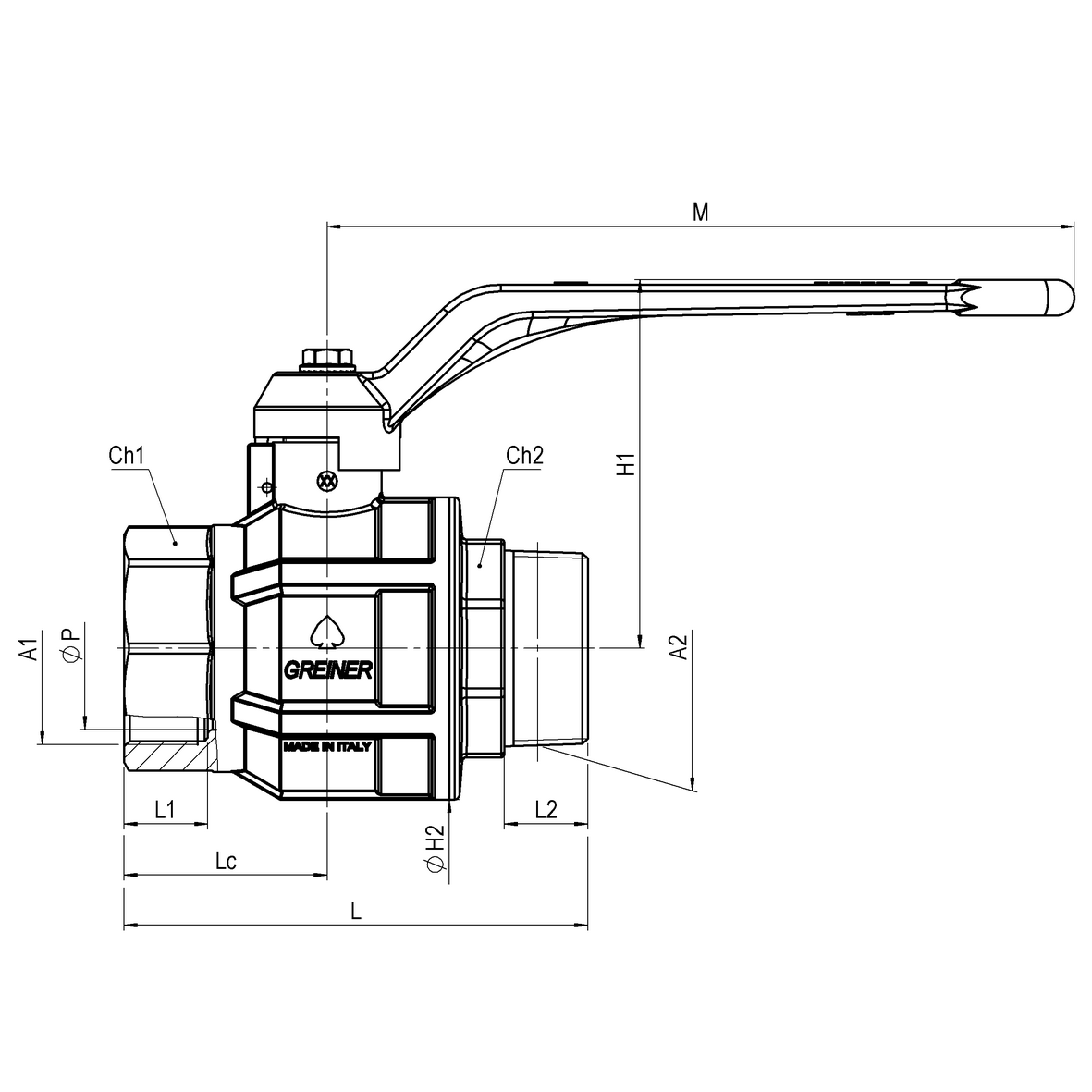

Water full-bore ball valve, heavy execution, with “Niploy” handle MALE-FEMALE
Application WATER
VALVES
Full-bore ball valves
Full
Full-bore ball valves
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65438800300 | 7,67 | 7,67 | 2 | 280 | 0 | 198 | 0 | 0 | 0 | 0 | 33,2 | 33,3 | 0 | Rp3 | R3 | F-M | 0 | 0 | 141,5 | 141 | 79 | 0 | 0 | 0 | 0 | 89,5 | 0 | ott.102 | 0 | 0 | PN32 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
