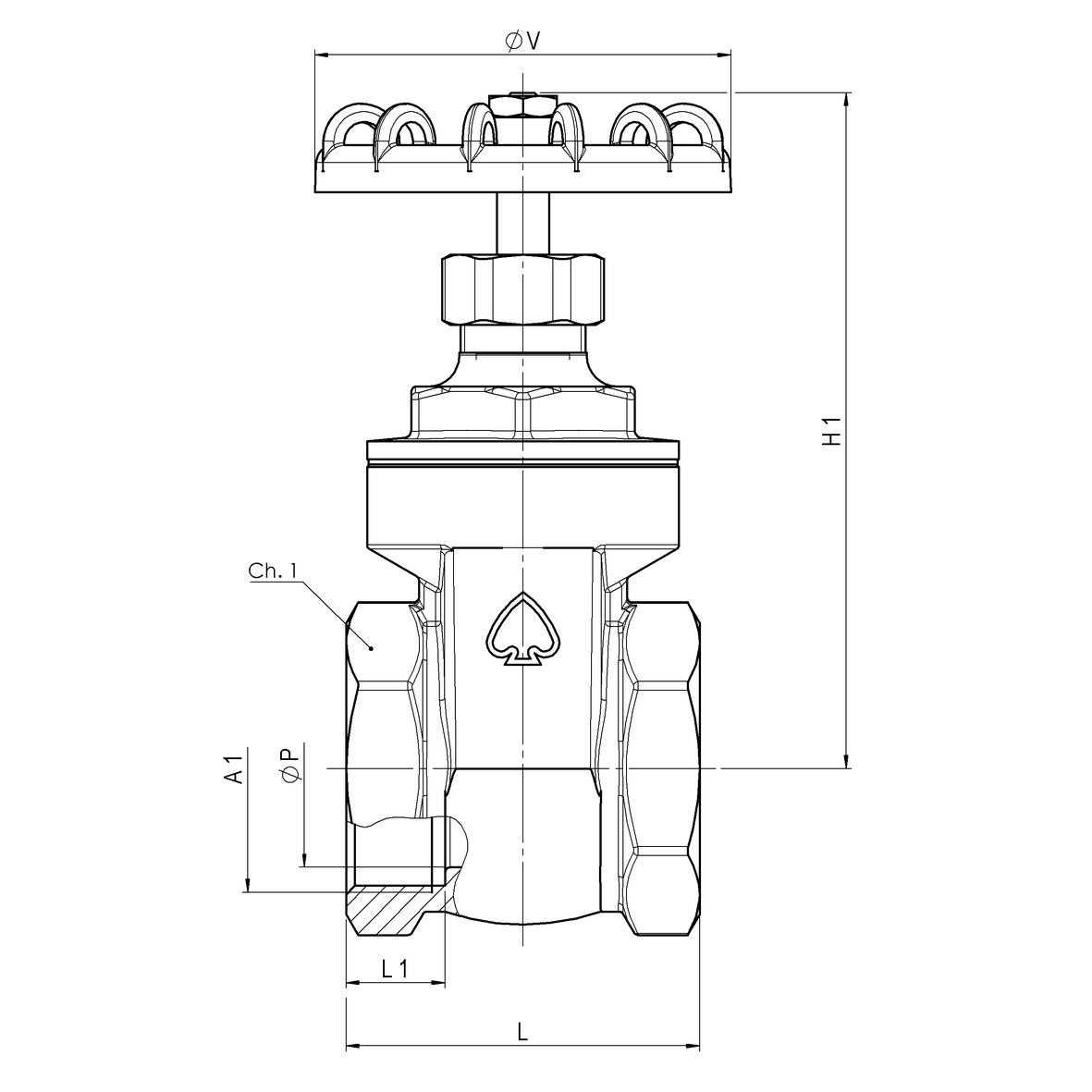

Saracinesca in bronzo a passaggio totale PN25 con volantino di manovra F-F

Articolo ACQUA

SARACINESCHE
Tipo normale

Codice	Peso	Imballo	Imballo Master	ØV	L	Lc	L1	H1	ØH2	ØP	ØDf	i	Ød	NA	NA	NA	NA	n	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	Ch1	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	A1	A2	PN	Kv
11050000050	0,29	0,29	60	60	45	22,5	11	77	0	13	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	es.28	0	0	0	0	0	0	0	0	0	0	0	F-F	G1/2	0	PN25	0
11050000075	0,4	0,4	60	60	50	25	14	87,5	0	19	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	es.33	0	0	0	0	0	0	0	0	0	0	0	F-F	G3/4	0	PN25	0
11050000100	0,64	0,64	40	70	57	0	15	103	0	25	0	0	0	0	Femmina	Femmina	G1	0	0	0	0	0	0	0	0	0	0	G1	ISO 228	ISO 228	es.41	0	0	0	0	0	0	0	0	0	0	0	F-F	G1	0	PN25	0
11050000125	0,76	0,76	32	70	60	30	16	113,5	0	31	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	es.50	0	0	0	0	0	0	0	0	0	0	0	F-F	G1.1/4	0	PN25	0
11050000150	1,08	1,08	24	80	68	34	19	130	0	38	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	es.56	0	0	0	0	0	0	0	0	0	0	0	F-F	G1.1/2	0	PN25	0
11050000200	1,72	1,72	16	95	73	36,5	19	158,5	0	48	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	es.68	0	0	0	0	0	0	0	0	0	0	0	F-F	G2	0	PN25	0
11050000250	2,74	2,74	9	95	84	42	21	179	0	62	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	es.86	0	0	0	0	0	0	0	0	0	0	0	F-F	G2.1/2	0	PN25	0
11050000300	3,81	3,81	5	120	90	45	23	214,5	0	72	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	es.101	0	0	0	0	0	0	0	0	0	0	0	F-F	G3	0	PN25	0
11050000400	7,5	7,5	2	140	100	50	23	260	0	95	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	es.128	0	0	0	0	0	0	0	0	0	0	0	F-F	G4	0	PN25	0
11050000500	10,27	10,27	1	140	123	0	28	300	0	120	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F-F	G5	0	PN25	0

Scarica lo schema
